4) If the beam of question 2) is a cantilever with the support on the left of a steel W24 x 76 shape, determine if the deflection at the free end is adequate for the total load when it is used for a roof beam with a plaster ceiling. I = 2100 in', E = 29 x 10ʻksi. a

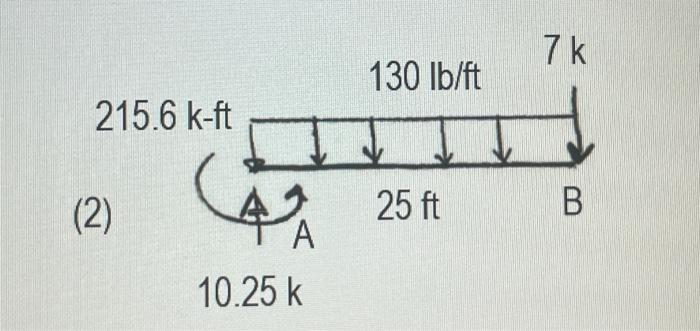

7 k. 130 lb/ft 215.6 k-ft (2) 48 25 ft B 10.25 k
