4. Draw the shear force and bending moment diagrams for the beam loaded as shown. The reactions are A = 600 lb and B = 8
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
4. Draw the shear force and bending moment diagrams for the beam loaded as shown. The reactions are A = 600 lb and B = 8

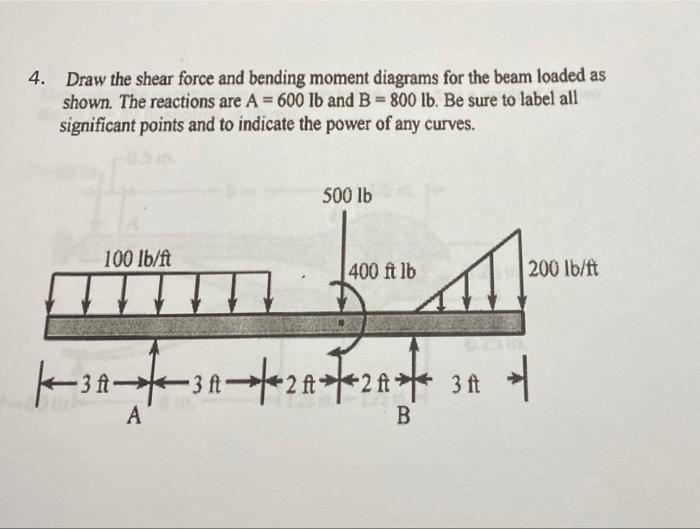

4. Draw the shear force and bending moment diagrams for the beam loaded as shown. The reactions are A = 600 lb and B = 800 lb. Be sure to label all significant points and to indicate the power of any curves. 500 lb 100 lb/ft LM- 400 ft lb 200 lb/ft |-34*34fe24*7*21*** 34 of ft- 3 ft -2 ft B
