3- For the footing shown, determine the gross allowable load (Qall) that the footing can carry using Terzaghi’s general

[answerhappygod]

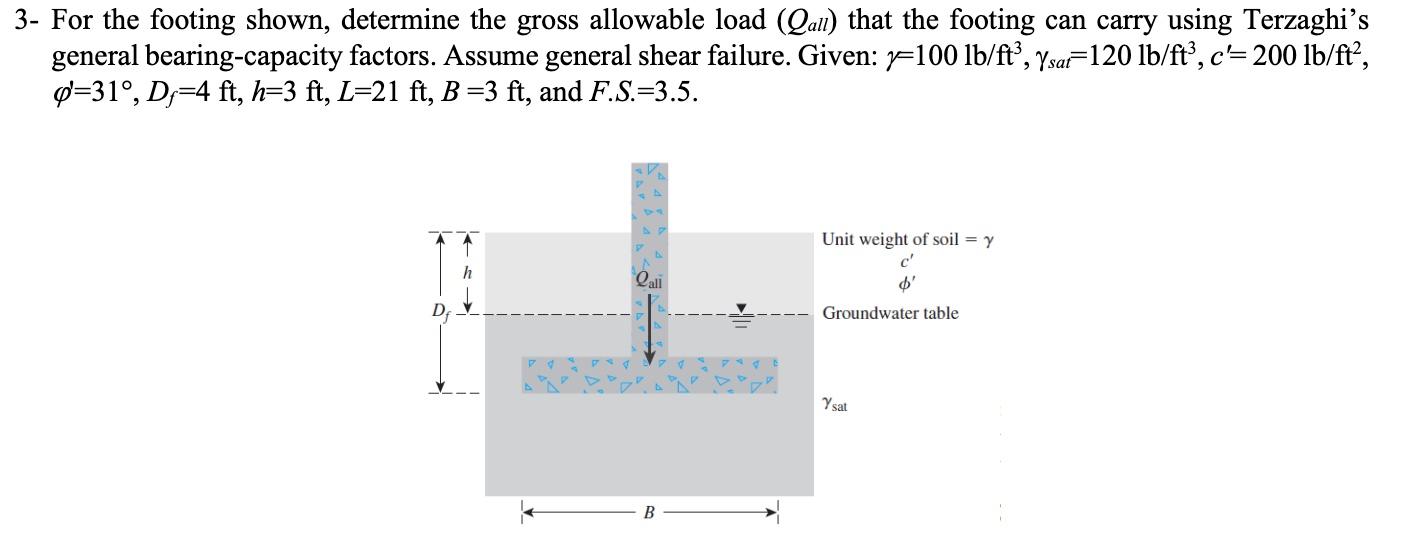

3 For The Footing Shown Determine The Gross Allowable Load Qall That The Footing Can Carry Using Terzaghi S General 1 (58.25 KiB) Viewed 46 times

3- For the footing shown, determine the gross allowable load (Qall) that the footing can carry using Terzaghi’s general bearing-capacity factors. Assume general shear failure. Given: 7-100 lb/ft?, Ysar=120 lb/ft?, c'= 200 lb/ft?, Ø=31°, D;=4 ft, h=3 ft, L=21 ft, B =3 ft, and F.S.=3.5. Unit weight of soil = y Qali $ Groundwater table sat
