Use the Moment Distribution Method to analyse the frame when subjected to the loading shown. Dimensions and load values,

[answerhappygod]

Use The Moment Distribution Method To Analyse The Frame When Subjected To The Loading Shown Dimensions And Load Values 1 (82.35 KiB) Viewed 44 times

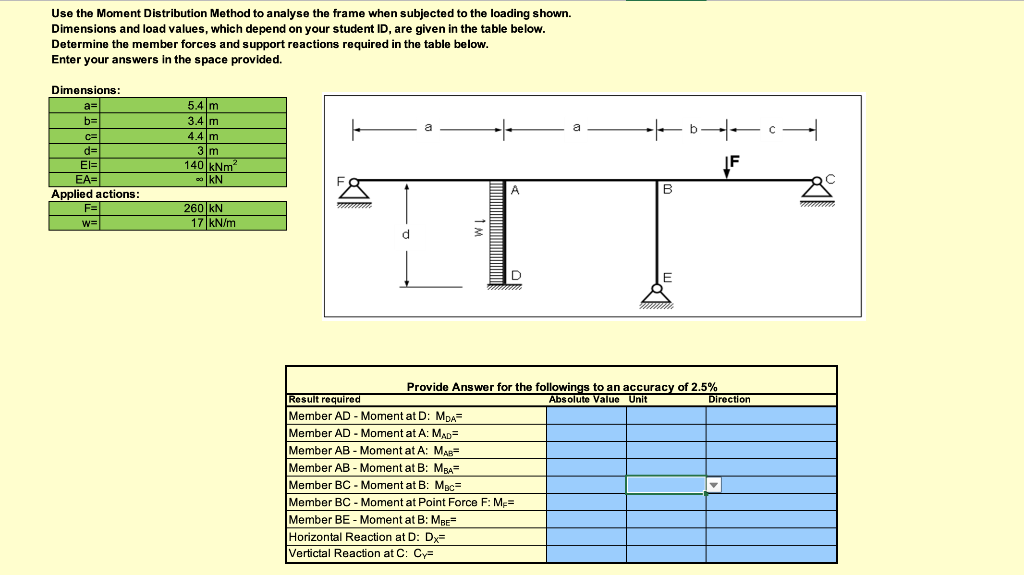

Use the Moment Distribution Method to analyse the frame when subjected to the loading shown. Dimensions and load values, which depend on your student ID, are given in the table below. Determine the member forces and support reactions required in the table below. Enter your answers in the space provided. 5.4 m 3.4 m b 4.4 m -1 Dimensions: a= b= c= d= EI= EA= Applied actions: F= w= 3 m 140 kNm? KN B 260 KN 17 kN/m d Provide Answer for the followings to an accuracy of 2.5% Result required Absolute Value Unit Direction Member AD - Moment at D: MDA= Member AD - Moment at A: MAD= Member AB - Moment at A: Masa Member AB - Moment at B: MBA- Member BC - Moment at B: Mec= Member BC - Moment at Point Force F: Me= Member BE - Moment at B: MBE= Horizontal Reaction at D: Dx= Vertictal Reaction at C: Cy=
