- 2 18 Points 6 Points Each Water Is Siphoned From The Tank Shown In The Below Figure 1 Determine The Pressure At P 1 (87.52 KiB) Viewed 59 times
2. (18 points, 6 points each) Water is siphoned from the tank shown in the below figure. (1) Determine the pressure at p
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
2. (18 points, 6 points each) Water is siphoned from the tank shown in the below figure. (1) Determine the pressure at p

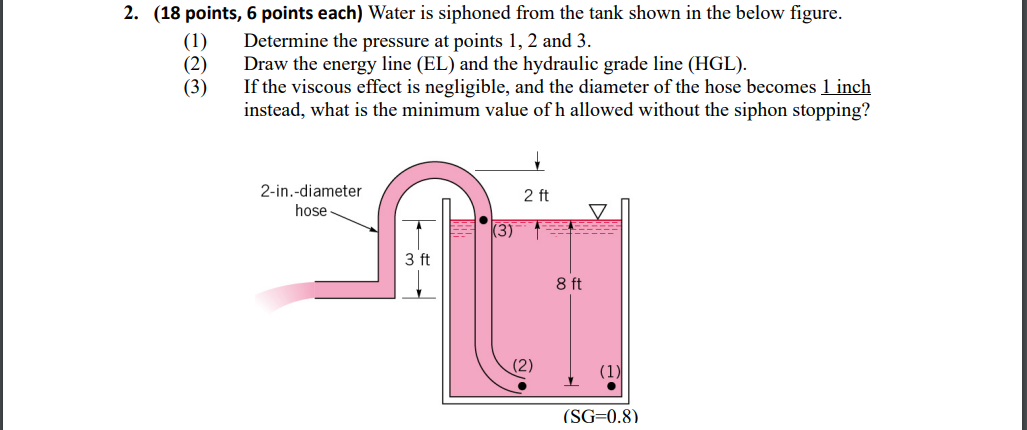

2. (18 points, 6 points each) Water is siphoned from the tank shown in the below figure. (1) Determine the pressure at points 1, 2 and 3. (2) Draw the energy line (EL) and the hydraulic grade line (HGL). (3) If the viscous effect is negligible, and the diameter of the hose becomes 1 inch instead, what is the minimum value of h allowed without the siphon stopping? 2-in.-diameter hose 2 ft (3) 3 ft 8 ft (1) (SG=0.8)
