5. (20 points, 10 points each) Inviscid Water flows steadily through the pipe shown below. It is known that the 4-in dia

Post by answerhappygod »

5 20 Points 10 Points Each Inviscid Water Flows Steadily Through The Pipe Shown Below It Is Known That The 4 In Dia 1
5 20 Points 10 Points Each Inviscid Water Flows Steadily Through The Pipe Shown Below It Is Known That The 4 In Dia 1 (78.42 KiB) Viewed 46 times

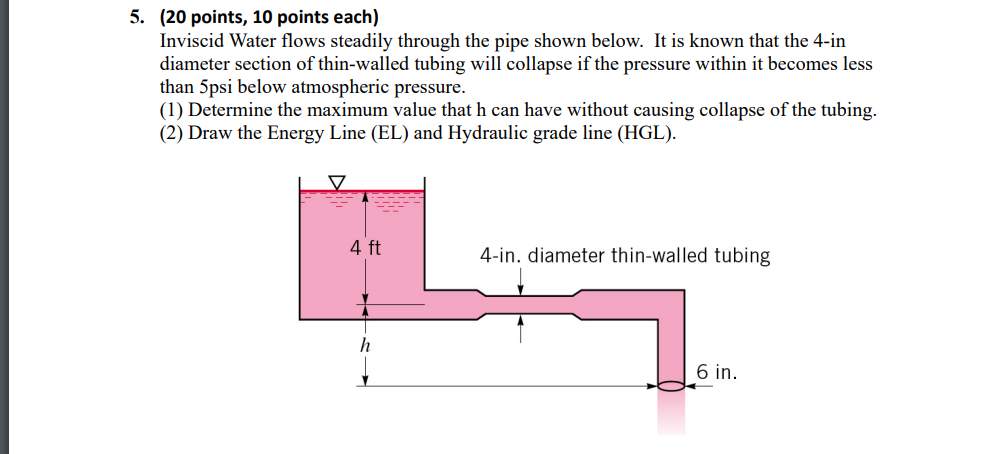

5. (20 points, 10 points each) Inviscid Water flows steadily through the pipe shown below. It is known that the 4-in diameter section of thin-walled tubing will collapse if the pressure within it becomes less than 5psi below atmospheric pressure. (1) Determine the maximum value that h can have without causing collapse of the tubing. (2) Draw the Energy Line (EL) and Hydraulic grade line (HGL). V 4 ft 4-in. diameter thin-walled tubing h 6 in.
