The jib crane is pin connected at A and supported by a pin connected collar on smooth rod at B. If z= 6.6 ft , determine

[answerhappygod]

The Jib Crane Is Pin Connected At A And Supported By A Pin Connected Collar On Smooth Rod At B If Z 6 6 Ft Determine 1 (103.97 KiB) Viewed 58 times

The Jib Crane Is Pin Connected At A And Supported By A Pin Connected Collar On Smooth Rod At B If Z 6 6 Ft Determine 2 (34.78 KiB) Viewed 58 times

The Jib Crane Is Pin Connected At A And Supported By A Pin Connected Collar On Smooth Rod At B If Z 6 6 Ft Determine 3 (26.31 KiB) Viewed 58 times

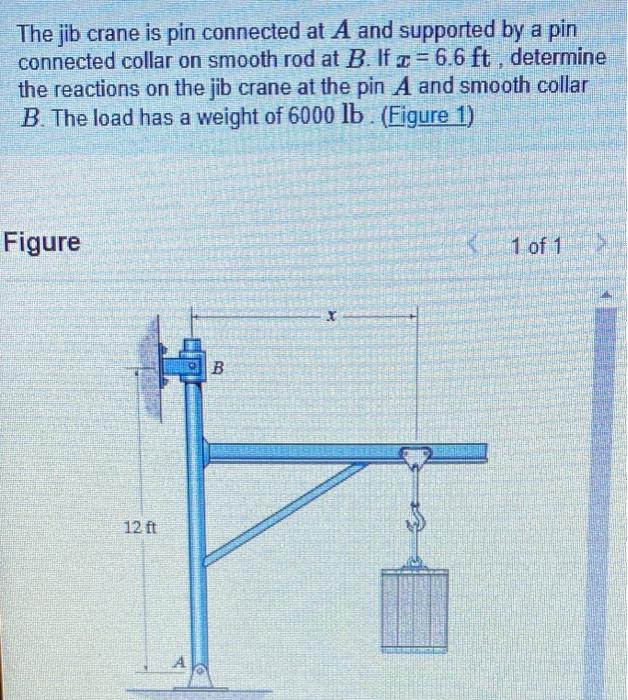

The jib crane is pin connected at A and supported by a pin connected collar on smooth rod at B. If z= 6.6 ft , determine the reactions on the jib crane at the pin A and smooth collar B. The load has a weight of 6000 lb . (Figure 1) Figure * 1 of 1 X B 12 ft А

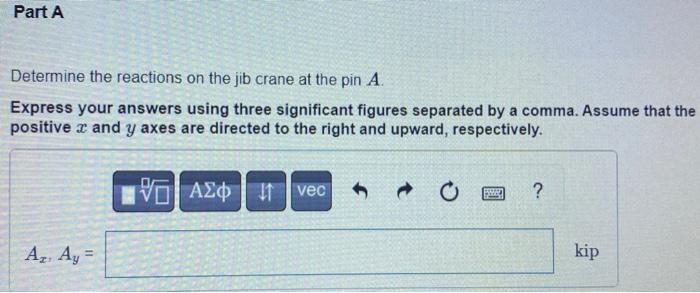

Part A Determine the reactions on the jib crane at the pin A. Express your answers using three significant figures separated by a comma. Assume that the positive x and y axes are directed to the right and upward, respectively. VALOItvec ΑΣΦ ? Ag, Ay = kip

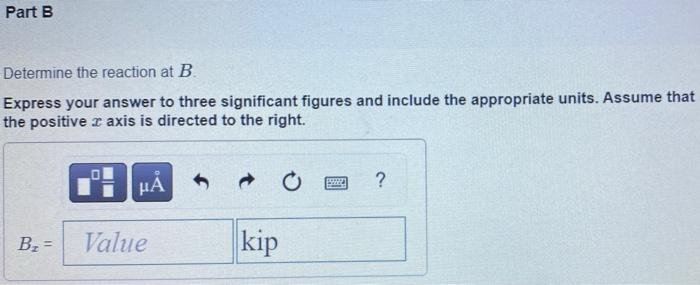

Part B Determine the reaction at B Express your answer to three significant figures and include the appropriate units. Assume that the positive x axis is directed to the right. μΑ ? li B2 = Value kip
