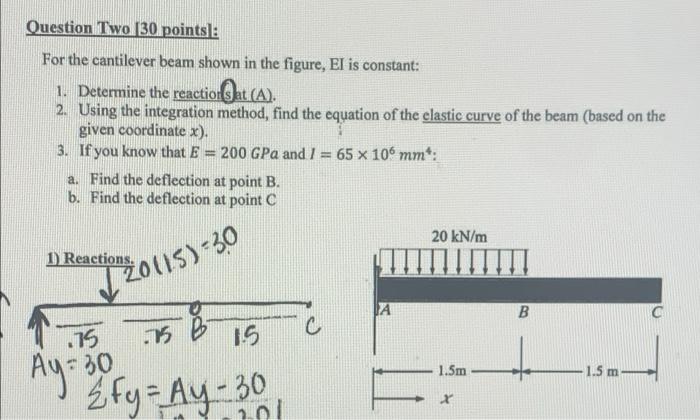

Question Two 30 points : For the cantilever beam shown in the figure, El is constant: 1. Determine the reactiorat (A). 2

[answerhappygod]

Question Two 30 Points For The Cantilever Beam Shown In The Figure El Is Constant 1 Determine The Reactiorat A 2 1 (48.54 KiB) Viewed 59 times

Question Two 30 points : For the cantilever beam shown in the figure, El is constant: 1. Determine the reactiorat (A). 2. Using the integration method, find the equation of the elastic curve of the beam (based on the given coordinate x). 3. If you know that E 200 GPa and 1 = 65 x 10 mm": a. Find the deflection at point B. b. Find the deflection at point 20 kN/m 1) Reactions. 2005)-30 B .6 D 15 .35 с .75 30 1.5m 1.5 m Ay = 2 fy= Ay - 30 X 201
