Problem 4 (15 points) 60 MPa Drawing Mohr's circle for the stress conditions shown, determine the principal stresses and

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Problem 4 (15 points) 60 MPa Drawing Mohr's circle for the stress conditions shown, determine the principal stresses and

Post by answerhappygod »

Problem 4 15 Points 60 Mpa Drawing Mohr S Circle For The Stress Conditions Shown Determine The Principal Stresses And 1
Problem 4 15 Points 60 Mpa Drawing Mohr S Circle For The Stress Conditions Shown Determine The Principal Stresses And 1 (286.48 KiB) Viewed 64 times

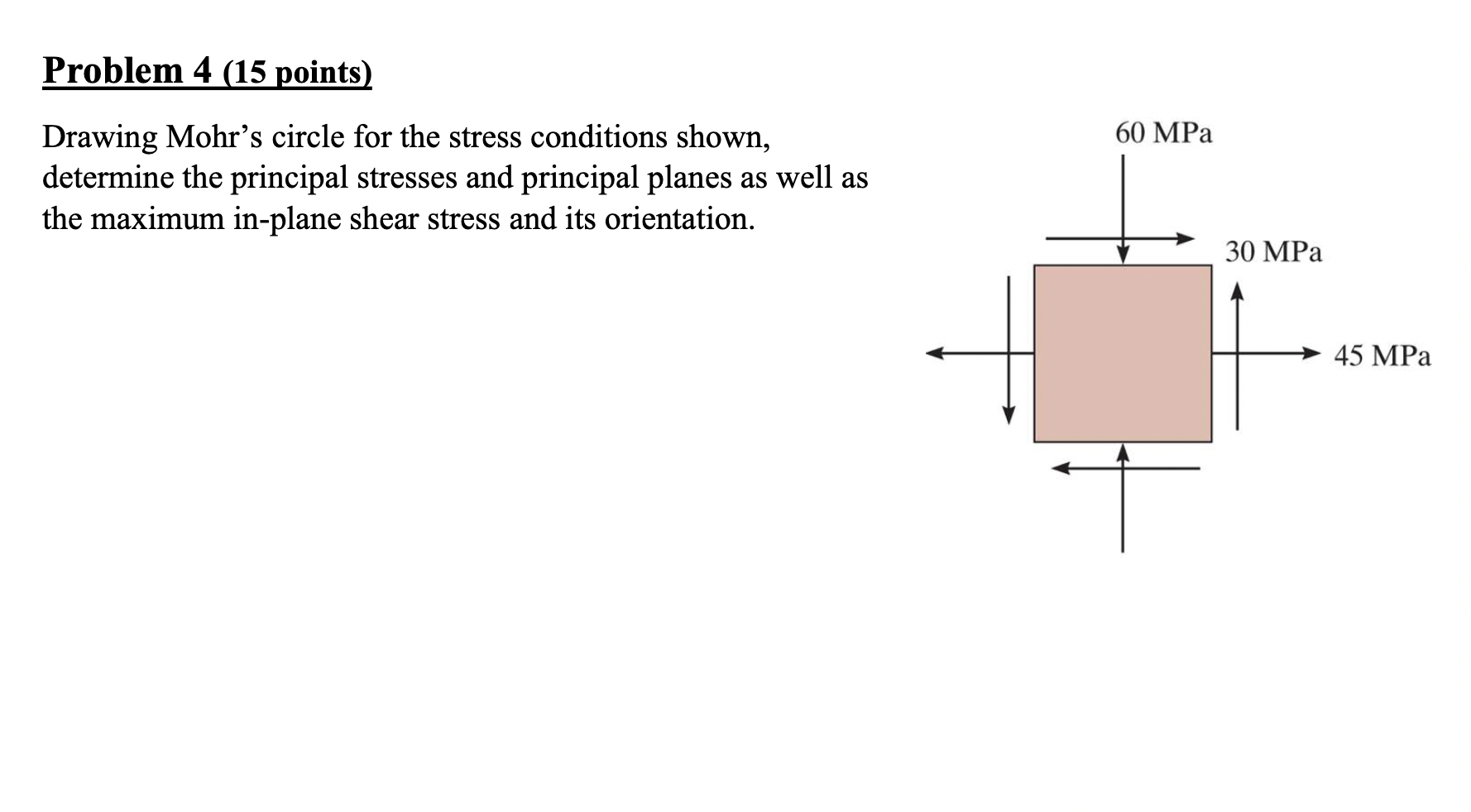

Problem 4 (15 points) 60 MPa Drawing Mohr's circle for the stress conditions shown, determine the principal stresses and principal planes as well as the maximum in-plane shear stress and its orientation. 30 MPa 45 MPa
