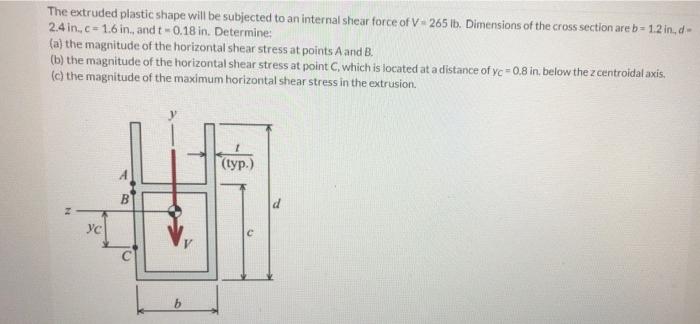

The extruded plastic shape will be subjected to an internal shear force of V-265 ib. Dimensions of the cross section are b = 1.2 in.d. 2.4 in..c=1.6 in, and t -0.18 in. Determine: (a) the magnitude of the horizontal shear stress at points A and B. (b) the magnitude of the horizontal shear stress at point C, which is located at a distance of yc = 0.8 in. below the z centroidal axis. (c) the magnitude of the maximum horizontal shear stress in the extrusion. (typ.) B 2 Ус 1

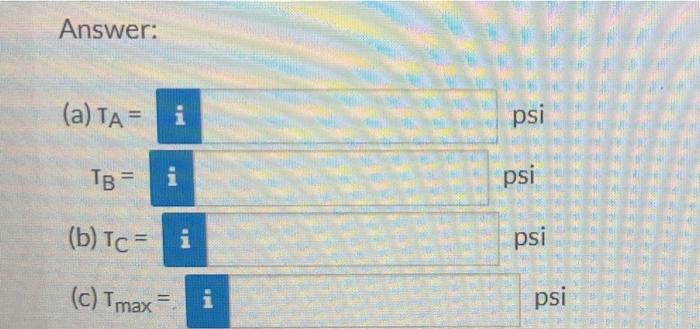

Answer: (a) TA= i psi TB = i psi (b) Tc = i psi (c) Tmax i psi
