This beam is a W16X162 with an area of 9.7 in 2, I = 5170 in 4, and a Secition modulus of 414 in^3. Fy of the steel is 5

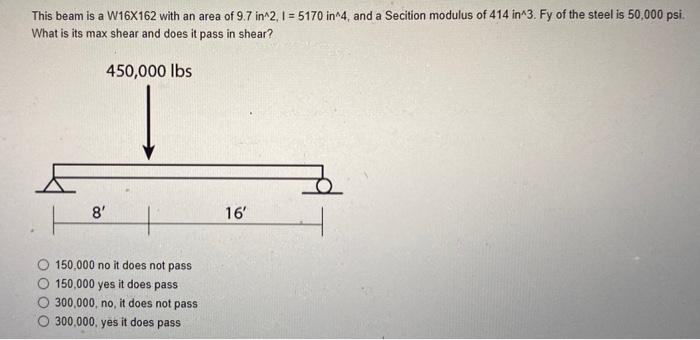

This beam is a W16X162 with an area of 9.7 in 2, I = 5170 in 4, and a Secition modulus of 414 in^3. Fy of the steel is 50,000 psi. What is its max shear and does it pass in shear? 450,000 lbs 8' 16' 150.000 no it does not pass 150,000 yes it does pass 300,000, no, it does not pass 300,000. yes it does pass
