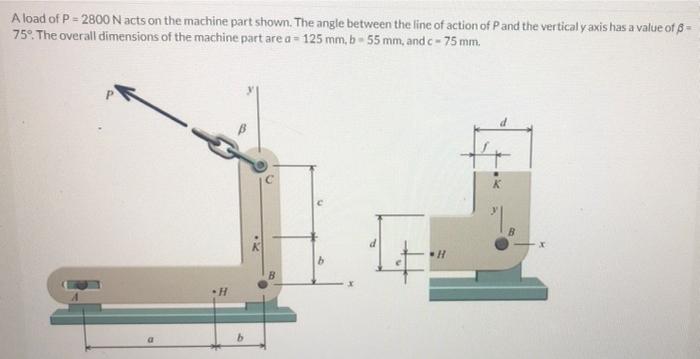

A load of P = 2800 N acts on the machine part shown. The angle between the line of action of Pand the vertical y axis has a value of 8 -- 75. The overall dimensions of the machine part are a = 125 mm, b - 55 mm, and c- 75 mm. B K В H

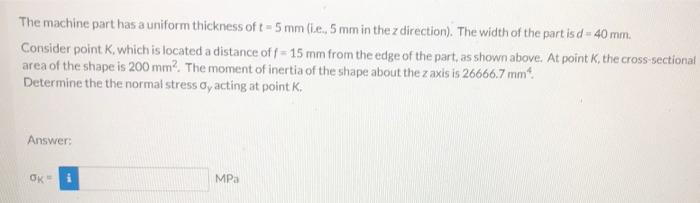

The machine part has a uniform thickness of t - 5 mm (ie, 5 mm in the z direction). The width of the part is d = 40 mm. Consider point K, which is located a distance of f = 15 mm from the edge of the part, as shown above. At point K, the cross-sectional area of the shape is 200 mm2. The moment of inertia of the shape about the z axis is 26666.7 mm Determine the the normal stress oy acting at point K. Answer: OK MPa
