Find the equations for NS, QS, MS for the following Arch for any
section (s)
at the left part of the arch. Use the values from the table for P
and w. Each
student’s ID number was assigned different values to solve. Be sure
to clearly
state the reactions, the equations , and fill a table for different
ɵ values (use ɵ
values like the ones used in class)
Find The Equations For Ns Qs Ms For The Following Arch For Any Section S At The Left Part Of The Arch Use The Value 1 (153.05 KiB) Viewed 35 times

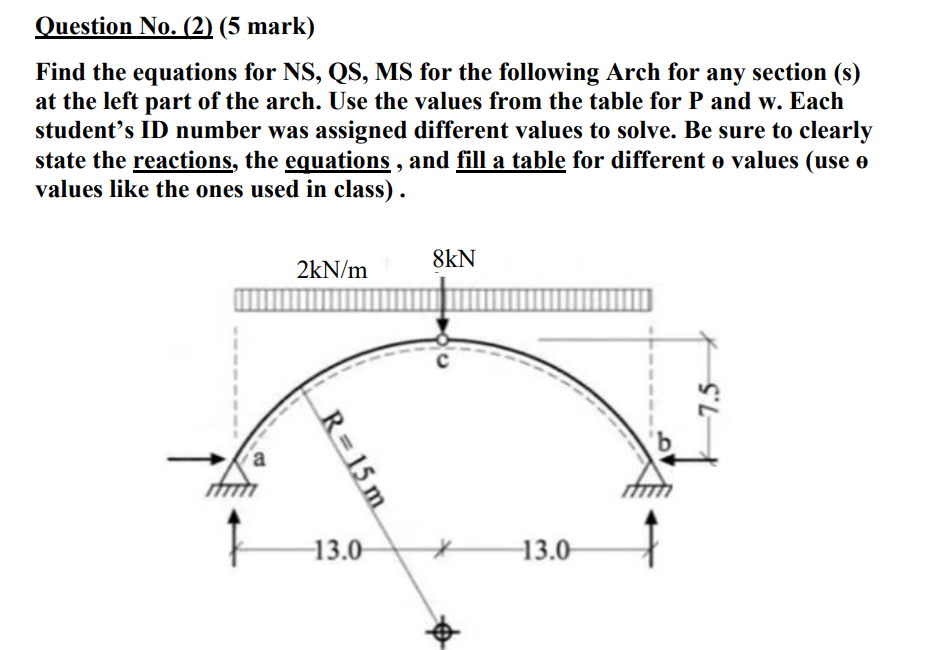

Question No. (2) (5 mark) Find the equations for NS, QS, MS for the following Arch for any section (s) at the left part of the arch. Use the values from the table for P and w. Each student's ID number was assigned different values to solve. Be sure to clearly state the reactions, the equations , and fill a table for different o values (use o values like the ones used in class). 8kN 2kN/m 7.5 be R= 15 m 1 13.0 13.0
