Question 10: Air flows through a Venturi channel of rectangular cross section as shown in the figure. The constant width

[answerhappygod]

Question 10 Air Flows Through A Venturi Channel Of Rectangular Cross Section As Shown In The Figure The Constant Width 1 (58.81 KiB) Viewed 52 times

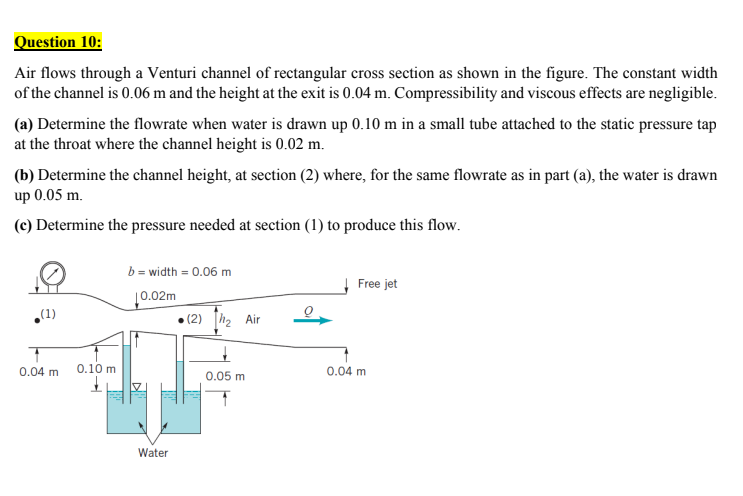

Question 10: Air flows through a Venturi channel of rectangular cross section as shown in the figure. The constant width of the channel is 0.06 m and the height at the exit is 0.04 m. Compressibility and viscous effects are negligible. (a) Determine the flowrate when water is drawn up 0.10 m in a small tube attached to the static pressure tap at the throat where the channel height is 0.02 m. (b) Determine the channel height, at section (2) where, for the same flowrate as in part (a), the water is drawn up 0.05 m. (e) Determine the pressure needed at section (1) to produce this flow. Free jet b = width = 0.06 m 10.02m (2) The Air .(1) 0.04 m 0.10 m 0.05 m 0.04 m Water
