Please find the maximum load “P” can be applied on the following truss. Consider all members with the same size of squar

Post by answerhappygod »

Please Find The Maximum Load P Can Be Applied On The Following Truss Consider All Members With The Same Size Of Squar 1
Please Find The Maximum Load P Can Be Applied On The Following Truss Consider All Members With The Same Size Of Squar 1 (165.92 KiB) Viewed 28 times

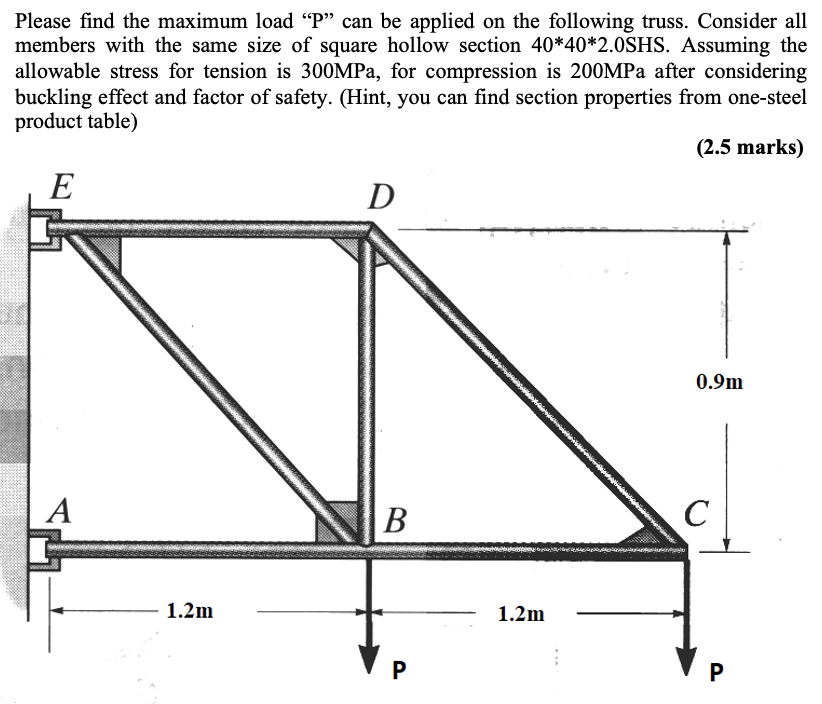

Please find the maximum load “P” can be applied on the following truss. Consider all members with the same size of square hollow section 40*40*2.OSHS. Assuming the allowable stress for tension is 300MPa, for compression is 200MPa after considering buckling effect and factor of safety. (Hint, you can find section properties from one-steel product table) (2.5 marks) E D 0.9m A B C 1.2m 1.2m P P P
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
