(10 points) In the set up shown below, shaft 1 is rotating about the z axis with constant angular velocity of 3 rad/s an

[answerhappygod]

10 Points In The Set Up Shown Below Shaft 1 Is Rotating About The Z Axis With Constant Angular Velocity Of 3 Rad S An 1 (152.08 KiB) Viewed 42 times

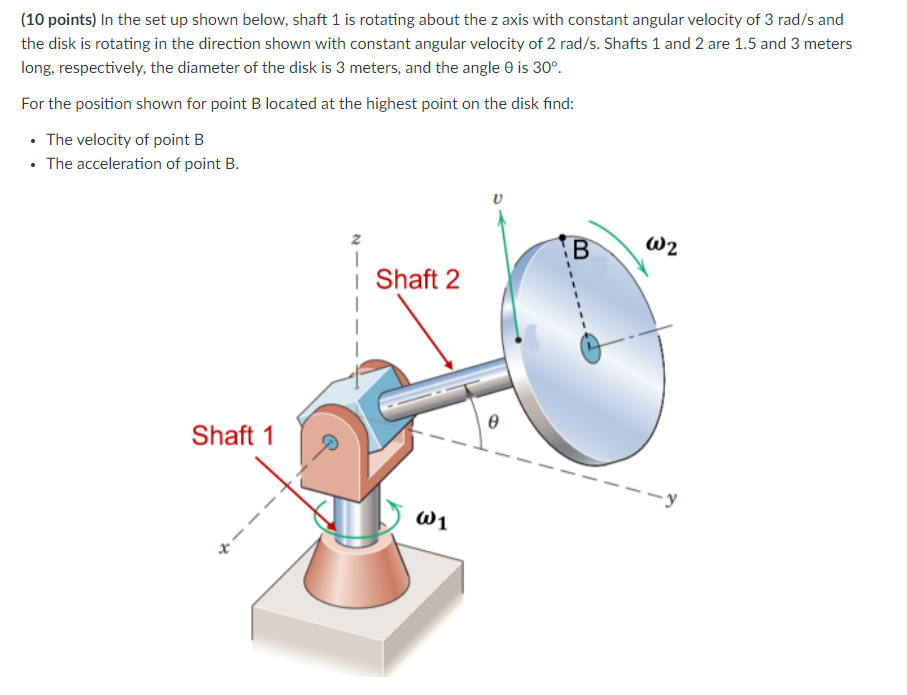

(10 points) In the set up shown below, shaft 1 is rotating about the z axis with constant angular velocity of 3 rad/s and the disk is rotating in the direction shown with constant angular velocity of 2 rad/s. Shafts 1 and 2 are 1.5 and 3 meters long, respectively, the diameter of the disk is 3 meters, and the angle 0 is 30°. For the position shown for point B located at the highest point on the disk find: · The velocity of point B • The acceleration of point B. 2 B W2 i Shaft 2 Ꮎ Shaft 1 -- W1
