For the rigid frame shown, determine (1) the displacement components and the rotation at node 2. (2) the support reactio

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

For the rigid frame shown, determine (1) the displacement components and the rotation at node 2. (2) the support reactio

Post by answerhappygod »

For The Rigid Frame Shown Determine 1 The Displacement Components And The Rotation At Node 2 2 The Support Reactio 1
For The Rigid Frame Shown Determine 1 The Displacement Components And The Rotation At Node 2 2 The Support Reactio 1 (18.58 KiB) Viewed 37 times

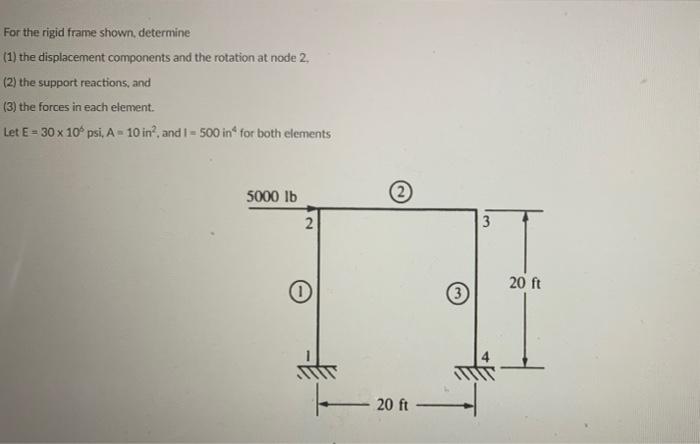

For the rigid frame shown, determine (1) the displacement components and the rotation at node 2. (2) the support reactions, and (3) the forces in each element. Let E - 30 x 10 psi, A-10 in', and I = 500 in" for both elements 5000 lb N 3 20 ft 20 ft
