4) The solid shaft in the figure (see figure in the attached file) is used to transmit the torques applied to the gears.

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

4) The solid shaft in the figure (see figure in the attached file) is used to transmit the torques applied to the gears.

Post by answerhappygod »

4 The Solid Shaft In The Figure See Figure In The Attached File Is Used To Transmit The Torques Applied To The Gears 1
4 The Solid Shaft In The Figure See Figure In The Attached File Is Used To Transmit The Torques Applied To The Gears 1 (137.49 KiB) Viewed 48 times

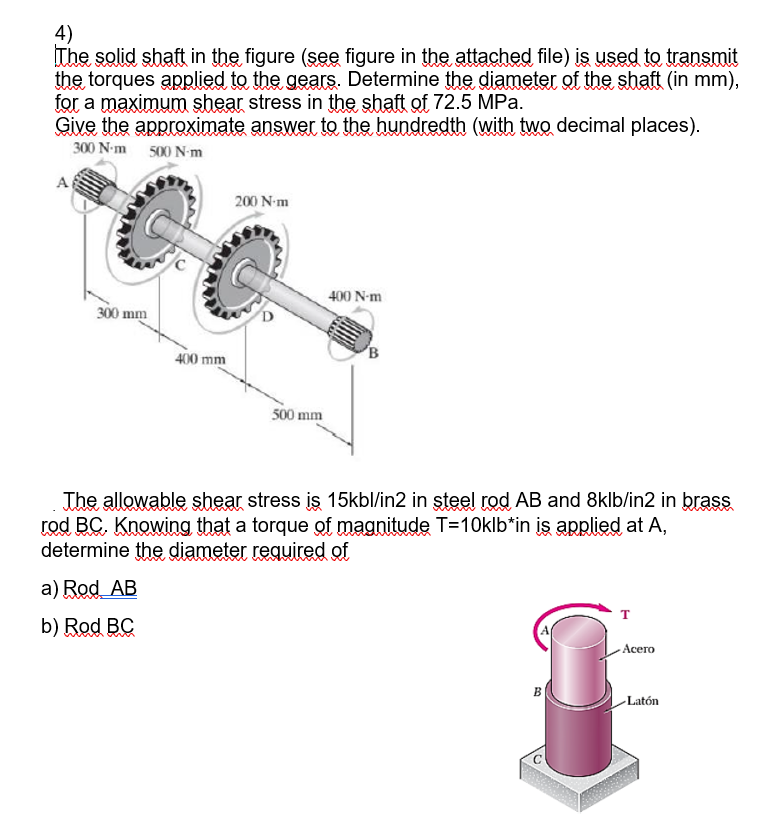

4) The solid shaft in the figure (see figure in the attached file) is used to transmit the torques applied to the gears. Determine the diameter of the shaft (in mm), for a maximum shear stress in the shaft of 72.5 MPa. Give the approximate answer to the hundredth (with two decimal places). 300 Nm 500 Nm A 200 Nm 400 N·m 300 mm 400 mm B 500 mm The allowable shear stress is 15kbl/in2 in steel rod AB and 8klb/in2 in brass. rod BC. Knowing that a torque of magnitude T=10klb*in is applied at A, determine the diameter required of a) Rod AB T b) Rod BC Acero B Latón u
