2) In the bar shown (see figure in attached file): F1 = 25kN, F2= 90KN, F3 = 69kN, p = 0.87m, q = 0.95m Determine the di
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
2) In the bar shown (see figure in attached file): F1 = 25kN, F2= 90KN, F3 = 69kN, p = 0.87m, q = 0.95m Determine the di

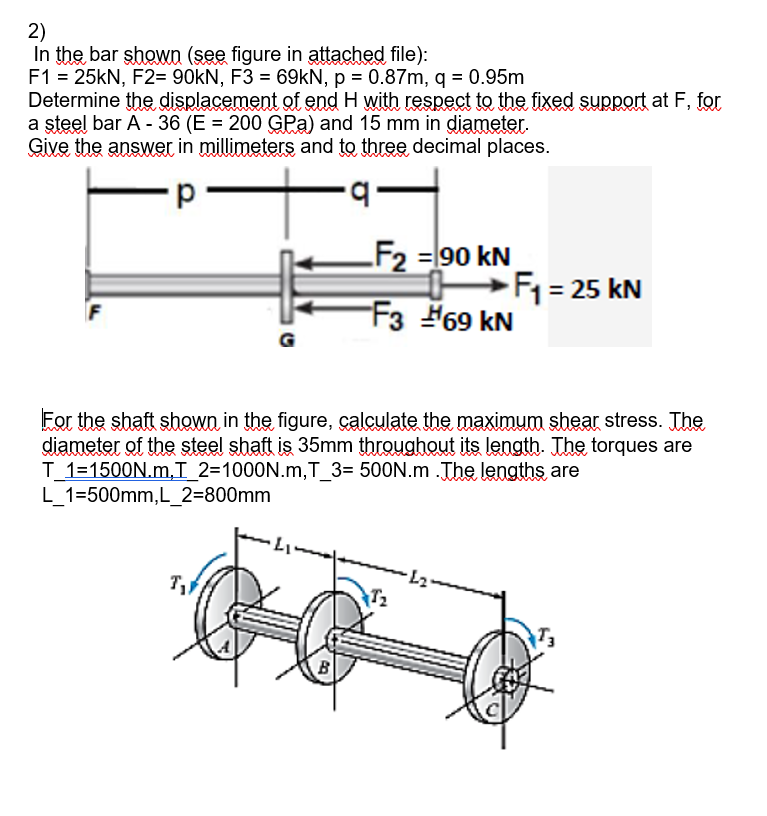

2) In the bar shown (see figure in attached file): F1 = 25kN, F2= 90KN, F3 = 69kN, p = 0.87m, q = 0.95m Determine the displacement of end H with respect to the fixed support at F, for a steel bar A - 36 (E = 200 GPa) and 15 mm in diameter. Give the answer in millimeters and to three decimal places. p -F2 = 90 KN F1 = 25 KN F3 69 KN For the shaft shown in the figure, calculate the maximum shear stress. The diameter of the steel shaft is 35mm throughout its length. The torques are T_1=1500N.m,I_2=1000N.m,T_3= 500N.m.The lengths are L_1=500mm,L_2=800mm 7 B
