Calculate The Friction Losses In The Prestressing Cable In The End Span Of The Post Tensioned Girder Of Figure 5 24 The 1 (16.6 KiB) Viewed 34 times
design of serviceability
need answer a BC in percentage only
posting for 2nd time

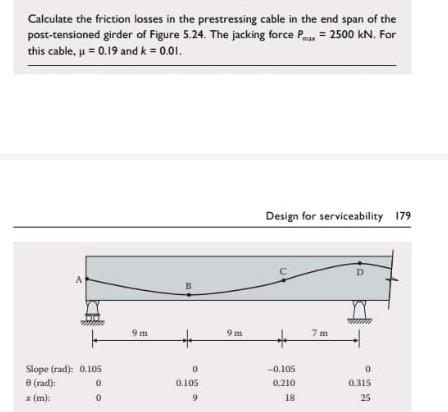

Calculate the friction losses in the prestressing cable in the end span of the post-tensioned girder of Figure 5.24. The jacking force P = 2500 kN. For this cable, = 0.19 and k = 0.01. Design for serviceability 179 D B 9m 9 m 7 m + Slope (rad): 0.105 (rad): 0 *) (m): 0 0 0.105 9 -0.105 0.210 18 0.315 25
