Draw the shear and moment diagrams for the beam subjected to the end couple. After you have the diagrams, answer the que
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
Draw the shear and moment diagrams for the beam subjected to the end couple. After you have the diagrams, answer the que

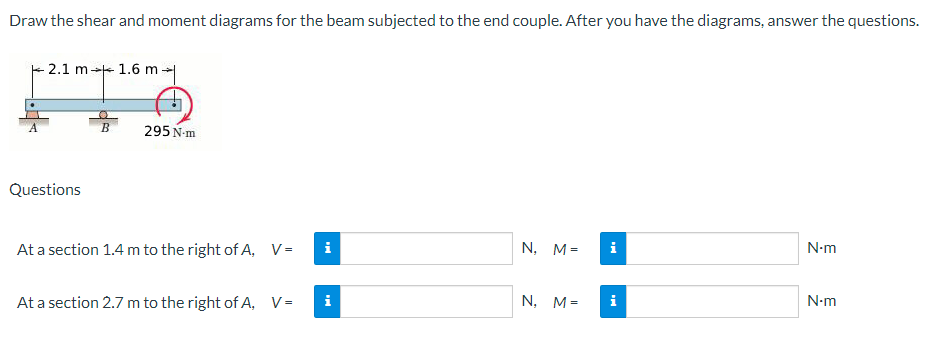

Draw the shear and moment diagrams for the beam subjected to the end couple. After you have the diagrams, answer the questions. 2.1 m - 1.6 m - B 295 N·m Questions At a section 1.4 m to the right of A, V= i N, M= i Nm At a section 2.7 m to the right of A, V= i N, M= i N.m
