Water travels, in a 2km long pipeline at a maximum flow rate of 0.12 m/s. The internal diameter of the pipe is 300 mm, p

[answerhappygod]

Water Travels In A 2km Long Pipeline At A Maximum Flow Rate Of 0 12 M S The Internal Diameter Of The Pipe Is 300 Mm P 1 (33.44 KiB) Viewed 49 times

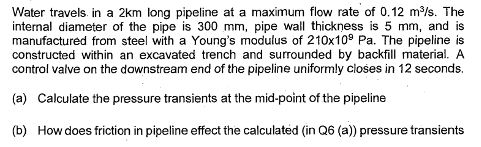

Water travels, in a 2km long pipeline at a maximum flow rate of 0.12 m/s. The internal diameter of the pipe is 300 mm, pipe wall thickness is 5 mm, and is manufactured from steel with a Young's modulus of 210x109 Pa. The pipeline is constructed within an excavated trench and surrounded by backfill material. A control valve on the downstream end of the pipeline uniformly closes in 12 seconds. (a) Calculate the pressure transients at the mid-point of the pipeline (b) How does friction in pipeline effect the calculated (in Q6 (a)) pressure transients
