Q3)(5 Points) Show your solution steps in details A 400-lb vertical force is applied at D to a gear attached to the soli

Post by answerhappygod »

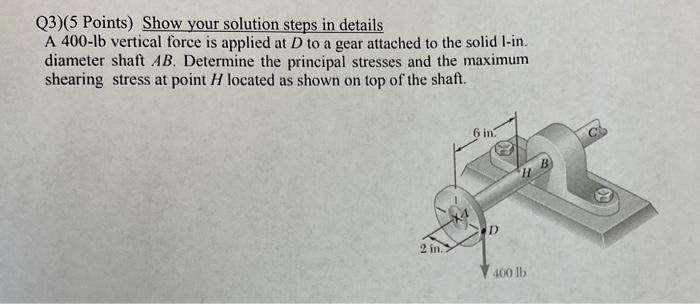

Q3 5 Points Show Your Solution Steps In Details A 400 Lb Vertical Force Is Applied At D To A Gear Attached To The Soli 1
Q3 5 Points Show Your Solution Steps In Details A 400 Lb Vertical Force Is Applied At D To A Gear Attached To The Soli 1 (27.98 KiB) Viewed 39 times
Q3)(5 Points) Show your solution steps in details A 400-lb vertical force is applied at D to a gear attached to the solid l-in. a diameter shaft AB. Determine the principal stresses and the maximum shearing stress at point H located as shown on top of the shaft. 6 in. D 2 in. 400 lb
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
