Influence Lines The system is supported with a fixed support at A, hinge at B, and roller at C. Draw the influence line

Post by answerhappygod »

Influence Lines The System Is Supported With A Fixed Support At A Hinge At B And Roller At C Draw The Influence Line 1
Influence Lines The System Is Supported With A Fixed Support At A Hinge At B And Roller At C Draw The Influence Line 1 (25.81 KiB) Viewed 87 times

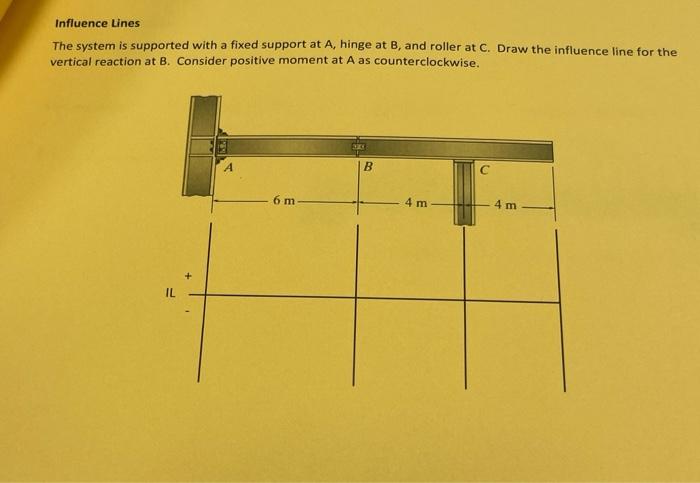

Influence Lines The system is supported with a fixed support at A, hinge at B, and roller at C. Draw the influence line for the vertical reaction at B. Consider positive moment at A as counterclockwise. B с 6 m 4 m 4 m + IL
