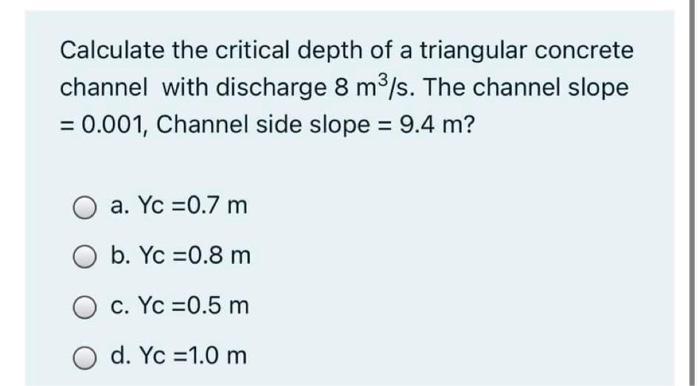

Calculate the critical depth of a triangular concrete channel with discharge 8 m3/s. The channel slope = 0.001, Channel side slope = 9.4 m? a. Yc =0.7 m b b. Yc =0.8 m O c. Yc =0.5 m d. Yc =1.0 m

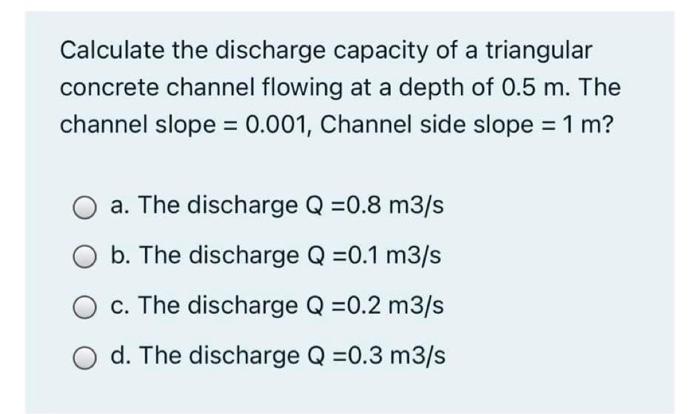

Calculate the discharge capacity of a triangular concrete channel flowing at a depth of 0.5 m. The channel slope = 0.001, Channel side slope = 1 m? a. The discharge Q =0.8 m3/s b. The discharge Q =0.1 m3/s c. The discharge Q =0.2 m3/s d. The discharge Q =0.3 m3/s
