Rigid Body Equilibrium The beam is loaded as shown and supported with a fixed support at A. Determine the reactions at A

Post by answerhappygod »

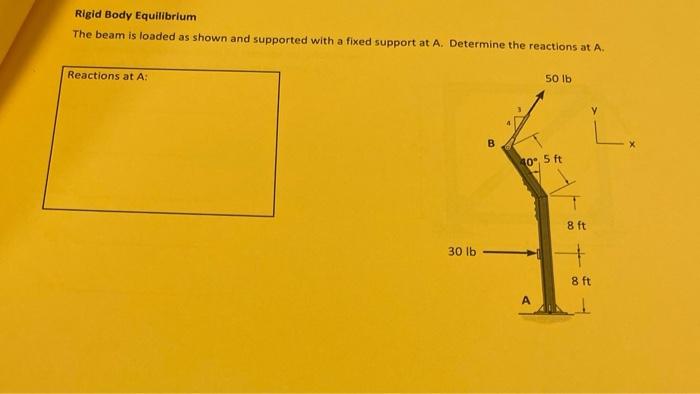

Rigid Body Equilibrium The Beam Is Loaded As Shown And Supported With A Fixed Support At A Determine The Reactions At A 1
Rigid Body Equilibrium The Beam Is Loaded As Shown And Supported With A Fixed Support At A Determine The Reactions At A 1 (18.06 KiB) Viewed 51 times
Rigid Body Equilibrium The beam is loaded as shown and supported with a fixed support at A. Determine the reactions at A. Reactions at A: 50 lb B 10° 5 ft T 8 ft 30 lb 8 ft A
