Mechanics of Materials Final Exam Sample Problem 5 (15 points) 3P The members of the truss shown have identical cross- s

Post by answerhappygod »

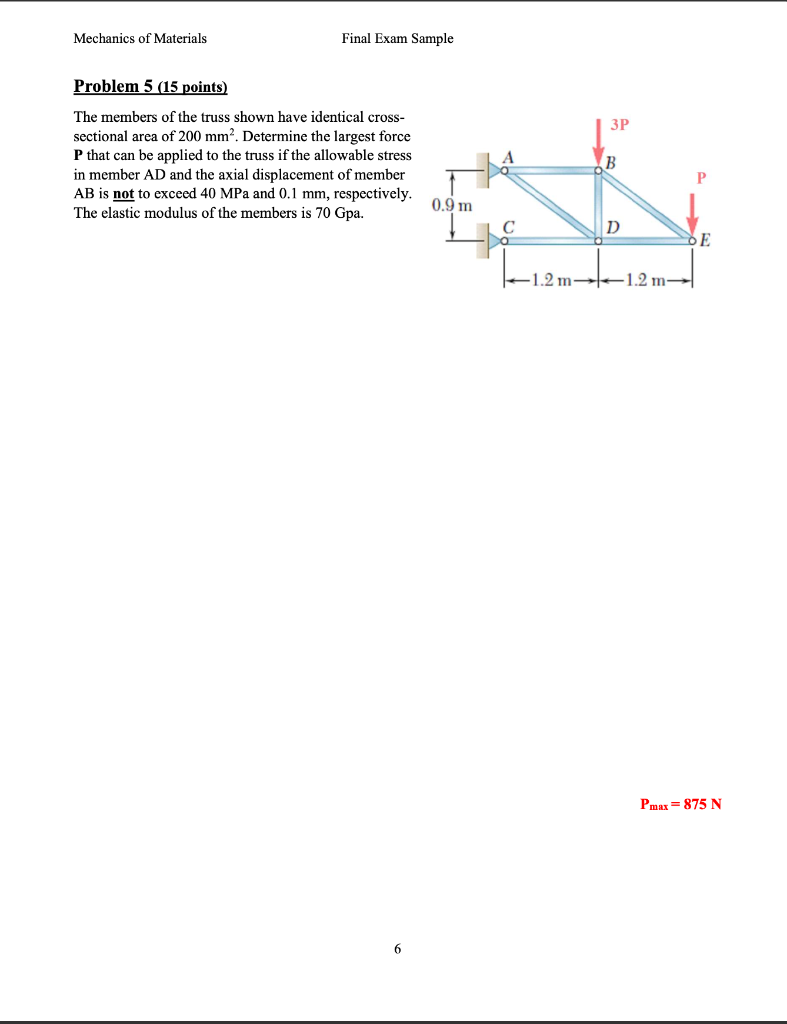

Mechanics Of Materials Final Exam Sample Problem 5 15 Points 3p The Members Of The Truss Shown Have Identical Cross S 1
Mechanics Of Materials Final Exam Sample Problem 5 15 Points 3p The Members Of The Truss Shown Have Identical Cross S 1 (83.19 KiB) Viewed 40 times
Mechanics of Materials Final Exam Sample Problem 5 (15 points) 3P The members of the truss shown have identical cross- sectional area of 200 mm². Determine the largest force P that can be applied to the truss if the allowable stress in member AD and the axial displacement of member AB is not to exceed 40 MPa and 0.1 mm, respectively. The elastic modulus of the members is 70 Gpa. B 0.9 m с D boek E -1.2 m 1.2 m Pmax=875 N 6
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
