2. Part of a piping network presented in the following figure showing the distribution of water flowrates in various pip

Post by answerhappygod »

2 Part Of A Piping Network Presented In The Following Figure Showing The Distribution Of Water Flowrates In Various Pip 1
2 Part Of A Piping Network Presented In The Following Figure Showing The Distribution Of Water Flowrates In Various Pip 1 (20.78 KiB) Viewed 51 times

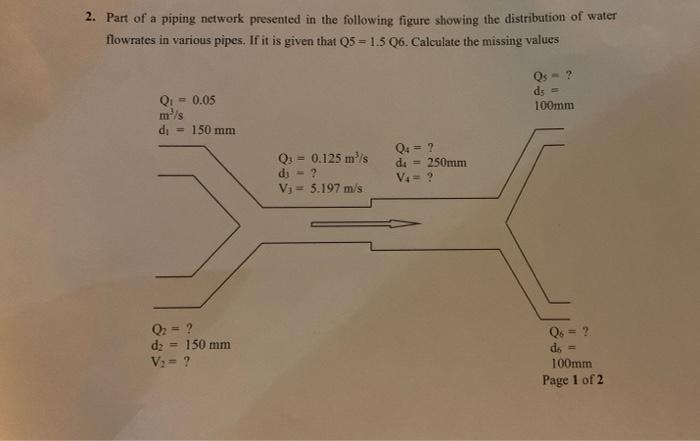

2. Part of a piping network presented in the following figure showing the distribution of water flowrates in various pipes. If it is given that 05 = 1.5 26. Calculate the missing values Os = ? ds 100mm Qi = 0.05 m/s di = 150 mm Q: = 0.125 m/s di = ? Vj = 5.197 m/s Q = ? di = 250mm VA? Q2 = ? dz = 150 mm V; = ? Qs = ? do = 100mm Page 1 of 2
