Problem 2 (50 points) Given: The rectangular area with rounded corners shown below. The origin of the x-y coordinate sys

Post by answerhappygod »

Problem 2 50 Points Given The Rectangular Area With Rounded Corners Shown Below The Origin Of The X Y Coordinate Sys 1
Problem 2 50 Points Given The Rectangular Area With Rounded Corners Shown Below The Origin Of The X Y Coordinate Sys 1 (92.02 KiB) Viewed 50 times
The rectangular area with rounded corners shown below. The
origin of the x-y coordinate system is at the centroid of the area.
In terms of the given dimensions b, h, and R, find the second
moment of area Ix of the rounded rectangle with respect to the
indicated x-axis.

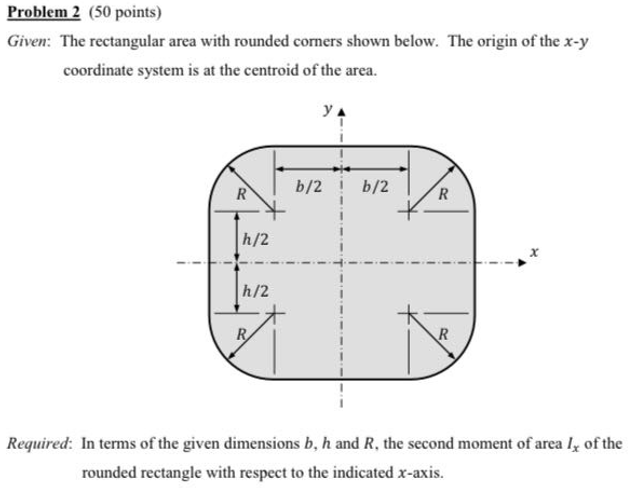

Problem 2 (50 points) Given: The rectangular area with rounded corners shown below. The origin of the x-y coordinate system is at the centroid of the area. у R b/ 2b/2 R h/2 X h/2 R R Required: In terms of the given dimensions b, h and R, the second moment of area 1, of the rounded rectangle with respect to the indicated x-axis.
