q M, P Mai G a = 5 m b = 2 m C = 4 m 9 = 2 kN/m P = 12 kN M = 28 kNm с 9 B a-b

Post by answerhappygod »

1
1 (31.72 KiB) Viewed 45 times

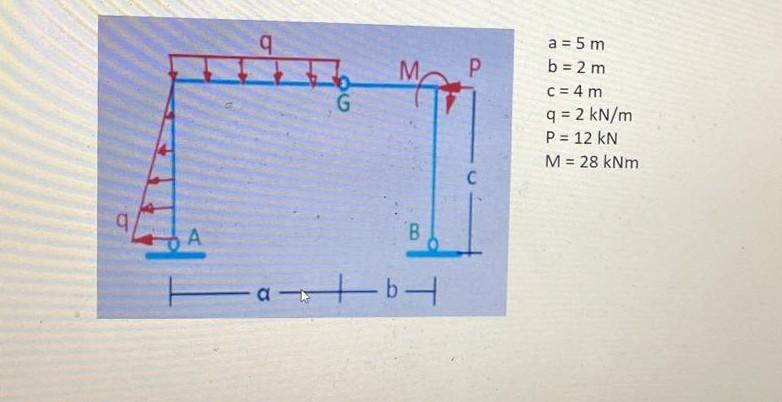

Calculate the dimensions and loading joint forces
a = 5 m
b = 2 m
c = 4 m
Q = 2 kn/m
P = 12 Kn
M = 28 KNm
please solve asap
