Calculate the reactions and joint forces. Support P= 10 kN M= 8 kN q1 = 2 kN/m q2 = 3 KN/m

Post by answerhappygod »

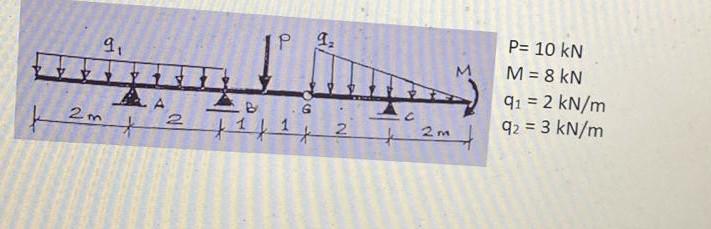

Calculate the reactions and joint forces. Support
P= 10 kN
M= 8 kN
q1 = 2 kN/m
q2 = 3 KN/m
Calculate The Reactions And Joint Forces Support P 10 Kn M 8 Kn Q1 2 Kn M Q2 3 Kn M 1
Calculate The Reactions And Joint Forces Support P 10 Kn M 8 Kn Q1 2 Kn M Q2 3 Kn M 1 (22.95 KiB) Viewed 53 times
9, Р 9. M ALA 2m + P= 10 KN M = 8 KN 91 = 2 kN/m 92 = 3 kN/m B 6 2 c 1 x 2 + 2 m
