a footing supporting is at depth of 2 m. the footing has an area
of 5m*12m. the results of pressure meter tests at the site are as
flows:
PL is changing with depth given in the below figure. GWT is 1m
below the ground, assuming unifoırm strength of soil to a
considerable depth.
determine the allowable bearing capacity for a FS=3. the
foudnation soil is clay with unit weight = 20 kN/m3.
A Footing Supporting Is At Depth Of 2 M The Footing Has An Area Of 5m 12m The Results Of Pressure Meter Tests At The S 1 (738.55 KiB) Viewed 41 times

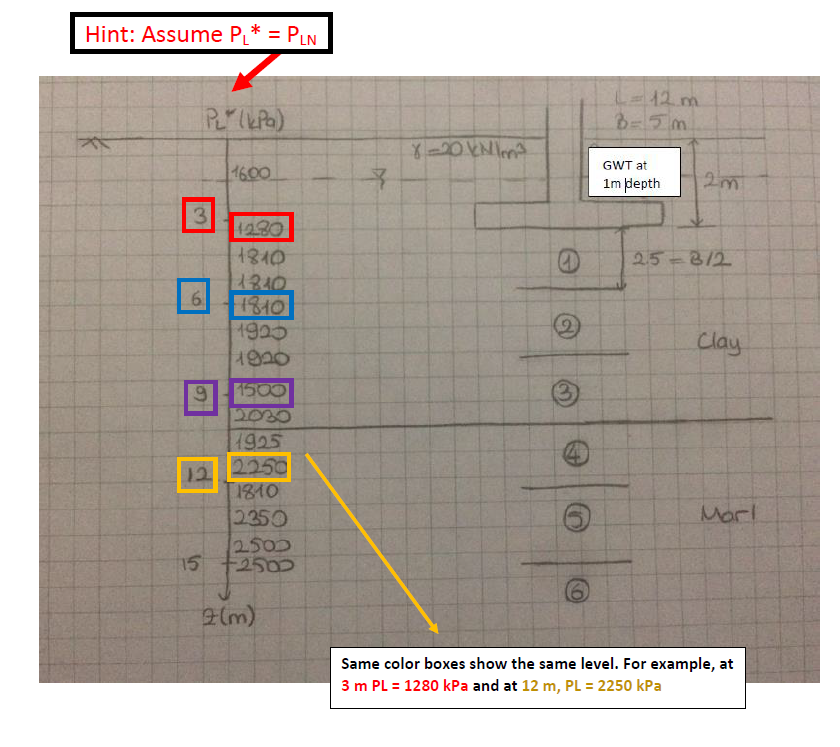

Hint: Assume P * = PLN PulkPa) L=12 m B=5 m 8-20 kN lma GWT at H14600 3 1m depth 12m 3 2.5 = 372 1280 1310 120 1810 1920 6 (2 Clay 9 12 1500 2030 1925 2250 1810 2350 2.500 -2500 15 a(m) Same color boxes show the same level. For example, at 3 m PL = 1280 kPa and at 12 m, PL = 2250 kPa
