Save Answer QUESTION 13 5 points For the three-pinned arch shown in Figure with supports at the same level all the porti

[answerhappygod]

Save Answer Question 13 5 Points For The Three Pinned Arch Shown In Figure With Supports At The Same Level All The Porti 1 (47.35 KiB) Viewed 34 times

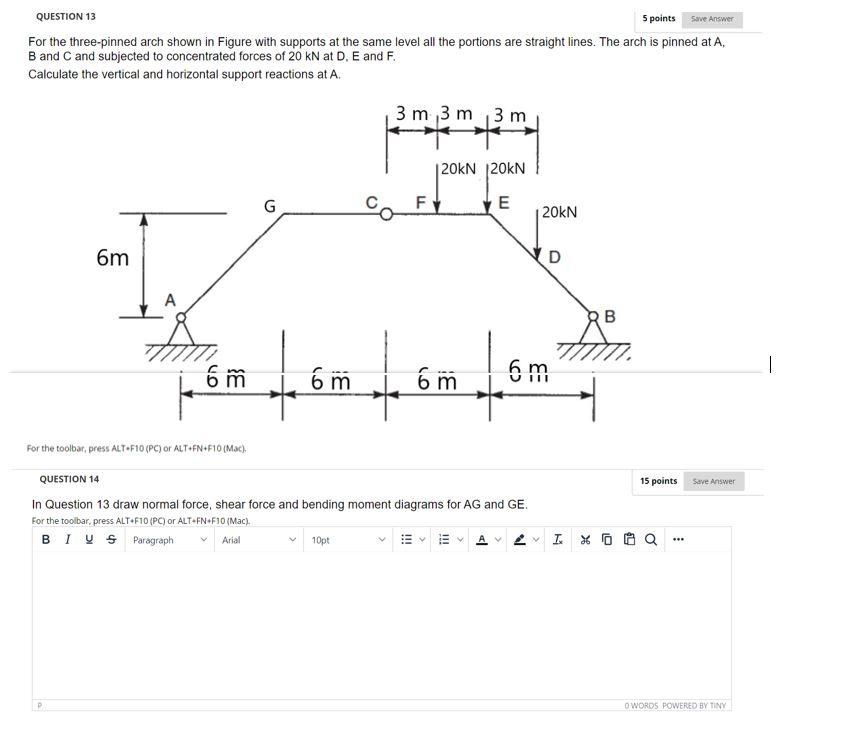

Save Answer QUESTION 13 5 points For the three-pinned arch shown in Figure with supports at the same level all the portions are straight lines. The arch is pinned at A, B and C and subjected to concentrated forces of 20 kN at D. E and F. Calculate the vertical and horizontal support reactions at A. 3 m3 m3 m 20kN 20KN G FY E 20KN 6m D A B | 6 m 6 m 6 m 6 m For the toolbar, press ALT=F10 (PC) or ALT+FN+F10(Mac), 15 points Save Answer QUESTION 14 In Question 13 draw normal force, shear force and bending moment diagrams for AG and GE. For the toolbar, press ALT+F10 (PC) or ALT+FN+F10 (Mac), BIUS Paragraph 10pt A2 Arial < !!! 111 < I. XOGQ 40 P O WORDS POWERED BY TINY
