Clay ft Time left 2 4 ft Datum C Gravel ft It Pressure head at point A- Elevation head at point A- Total head at point A Total head at point - Total head otpoint B It ft Pressure head at point 8 ft Pore pressure at point Dst Effective stress at point B ps

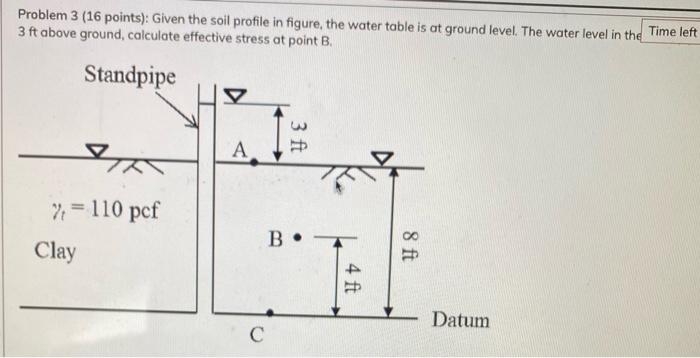

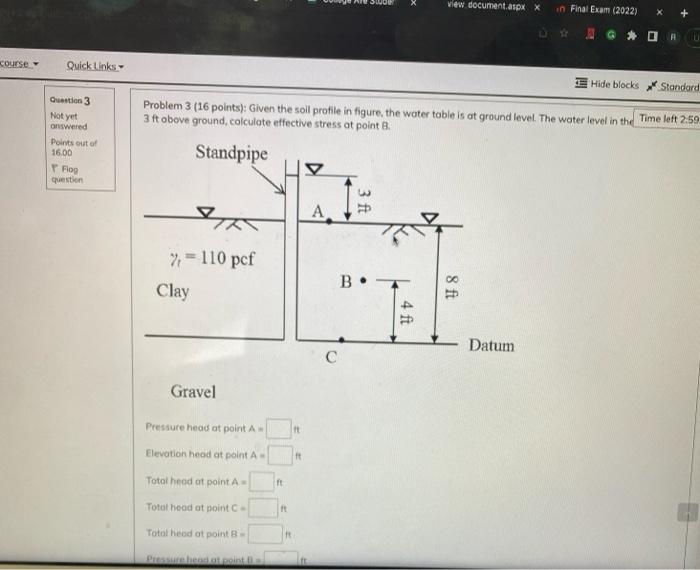

Problem 3 (16 points): Given the soil profile in figure, the water table is at ground level. The water level in the Time left 3 ft above ground, calculate effective stress at point B. Standpipe 3 ft TA А. % = 110 pcf Clay B. в 8 ft 4 ft Datum с

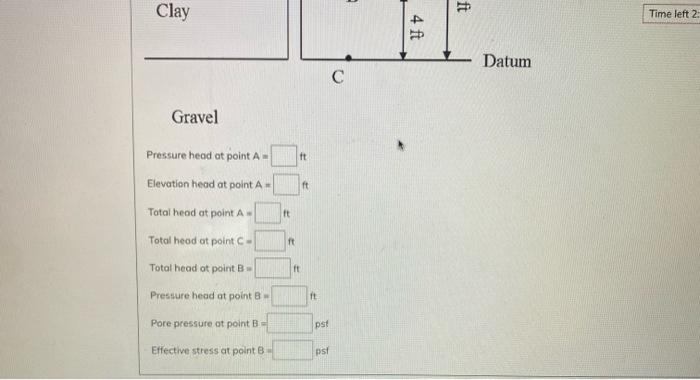

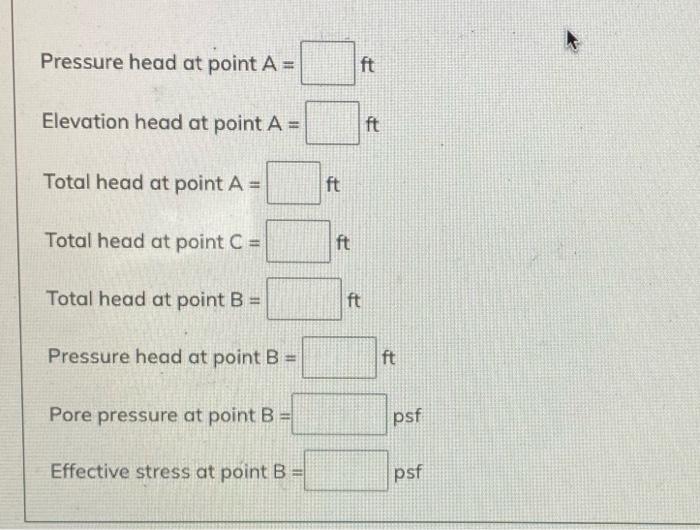

Pressure head at point A = ft Elevation head at point A = ft Total head at point A = ft Total head at point C = ft Total head at point B = ft Pressure head at point B = ft Pore pressure at point B = psf Effective stress at point B = psf
