Q N M = 2) A composed cross-section channel consists of a deep main channel and two shallow floodplains. The floodplains

Post by answerhappygod »

Q N M 2 A Composed Cross Section Channel Consists Of A Deep Main Channel And Two Shallow Floodplains The Floodplains 1
Q N M 2 A Composed Cross Section Channel Consists Of A Deep Main Channel And Two Shallow Floodplains The Floodplains 1 (820.42 KiB) Viewed 55 times

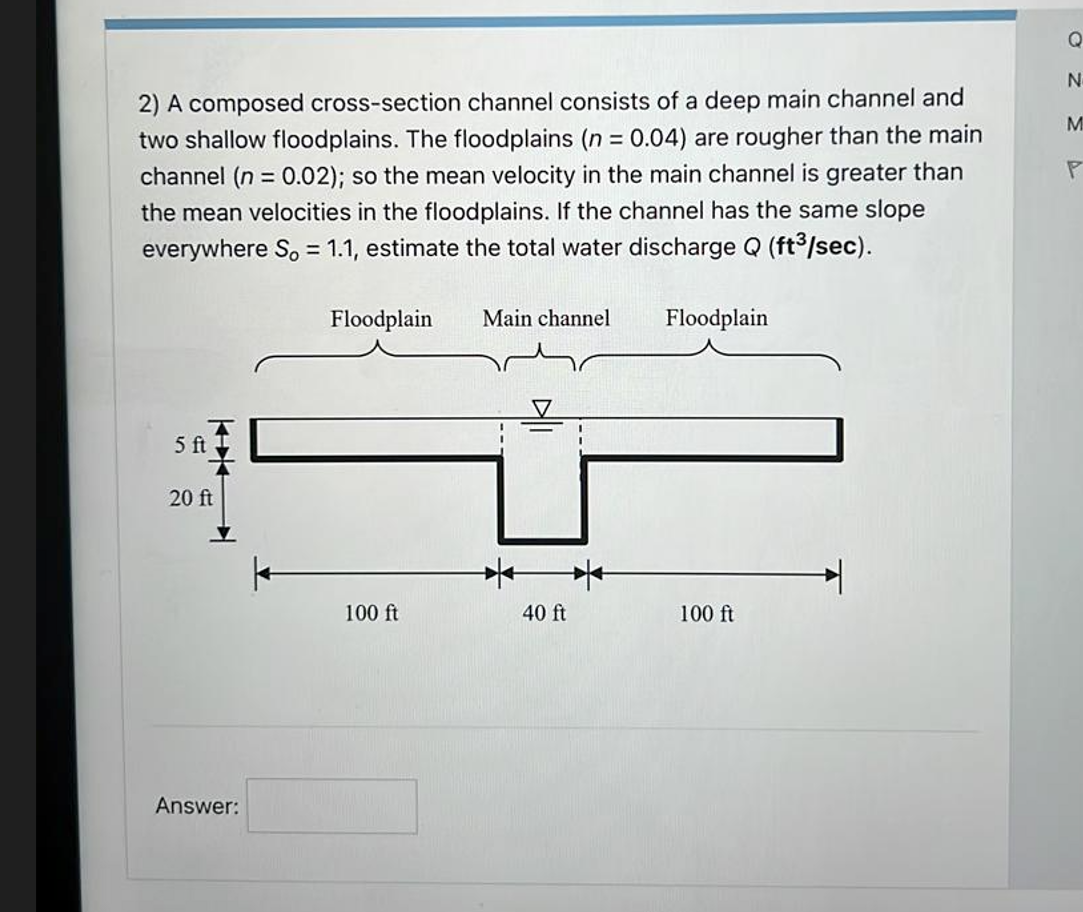

Q N M = 2) A composed cross-section channel consists of a deep main channel and two shallow floodplains. The floodplains (n = 0.04) are rougher than the main channel (n = 0.02); so the mean velocity in the main channel is greater than the mean velocities in the floodplains. If the channel has the same slope everywhere so = 1.1, estimate the total water discharge Q (ft3/sec). P = Floodplain Main channel Floodplain 5 ft 20 ft * 100 ft 40 ft 100 ft Answer:
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
