5. (a) For the full depth AC pavement designed in Problem4 (b), calculate the maximum tensile bending strain (EAC) in th

[answerhappygod]

5 A For The Full Depth Ac Pavement Designed In Problem4 B Calculate The Maximum Tensile Bending Strain Eac In Th 1 (42.98 KiB) Viewed 36 times

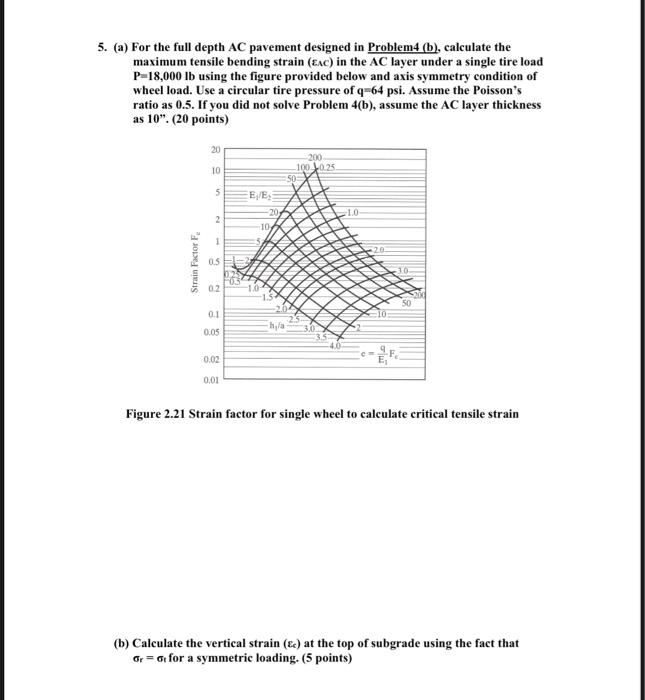

5. (a) For the full depth AC pavement designed in Problem4 (b), calculate the maximum tensile bending strain (EAC) in the AC layer under a single tire load P=18,000 lb using the figure provided below and axis symmetry condition of wheel load. Use a circular tire pressure of q-64 psi. Assume the Poisson's ratio as 0.5. If you did not solve Problem 4(b), assume the AC layer thickness as 10". (20 points) 20 10 200 100 0.25 50 5 E/E -20 10 10 2 1 20 Strain Factor F 0.5 03 02 1. 30 0.1 ha 0.05 0.02 0:01 Figure 2.21 Strain factor for single wheel to calculate critical tensile strain (b) Calculate the vertical strain (Ec) at the top of subgrade using the fact that Gr=Gt for a symmetric loading. (5 points)
