Pr. 3) The section given in Pr. 2 is used for the beam shown below. If this beam is subjected a uniformly distributed de

[answerhappygod]

Pr 3 The Section Given In Pr 2 Is Used For The Beam Shown Below If This Beam Is Subjected A Uniformly Distributed De 1 (116.24 KiB) Viewed 34 times

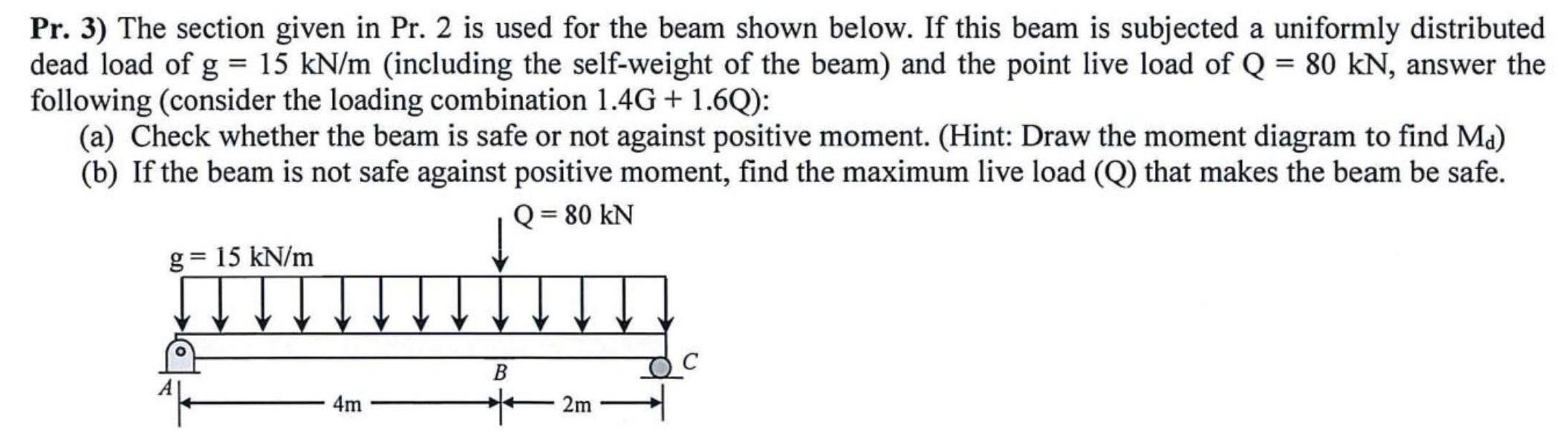

Pr. 3) The section given in Pr. 2 is used for the beam shown below. If this beam is subjected a uniformly distributed dead load of g = 15 kN/m (including the self-weight of the beam) and the point live load of Q = 80 kN, answer the following consider the loading combination 1.4G+ 1.6Q): (a) Check whether the beam is safe or not against positive moment. (Hint: Draw the moment diagram to find Md) (b) If the beam is not safe against positive moment, find the maximum live load (Q) that makes the beam be safe. Q = 80 KN g= 15 kN/m B 4m + 2m
