Pr. 1) For the rectangular beam section shown below: (a) Find the balanced reinforcement area (Asb), and the balanced re

[answerhappygod]

Pr 1 For The Rectangular Beam Section Shown Below A Find The Balanced Reinforcement Area Asb And The Balanced Re 1 (117.52 KiB) Viewed 37 times

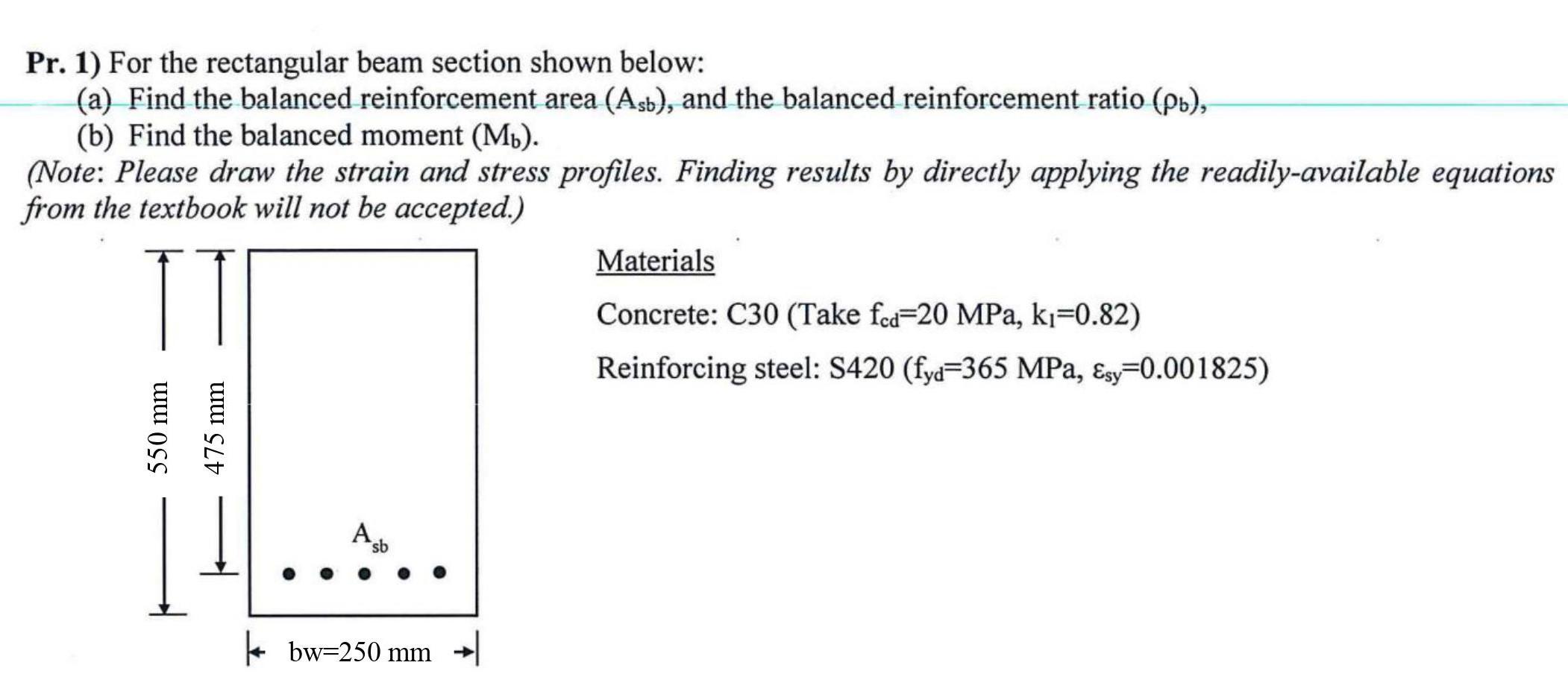

Pr. 1) For the rectangular beam section shown below: (a) Find the balanced reinforcement area (Asb), and the balanced reinforcement ratio (Pb), (b) Find the balanced moment (Mb). (Note: Please draw the strain and stress profiles. Finding results by directly applying the readily available equations from the textbook will not be accepted.) Materials Concrete: C30 (Take fcd=20 MPa, kı=0.82) Reinforcing steel: S420 (fyd=365 MPa, Esy=0.001825) 550 mm 475 mm A Aso 11 | bw=250 mm
