The Load Diagram of a certain beam is given as shown. Provide the required information based from the diagram. 2 kN/m D

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

The Load Diagram of a certain beam is given as shown. Provide the required information based from the diagram. 2 kN/m D

Post by answerhappygod »

The Load Diagram Of A Certain Beam Is Given As Shown Provide The Required Information Based From The Diagram 2 Kn M D 1
The Load Diagram Of A Certain Beam Is Given As Shown Provide The Required Information Based From The Diagram 2 Kn M D 1 (610.85 KiB) Viewed 39 times

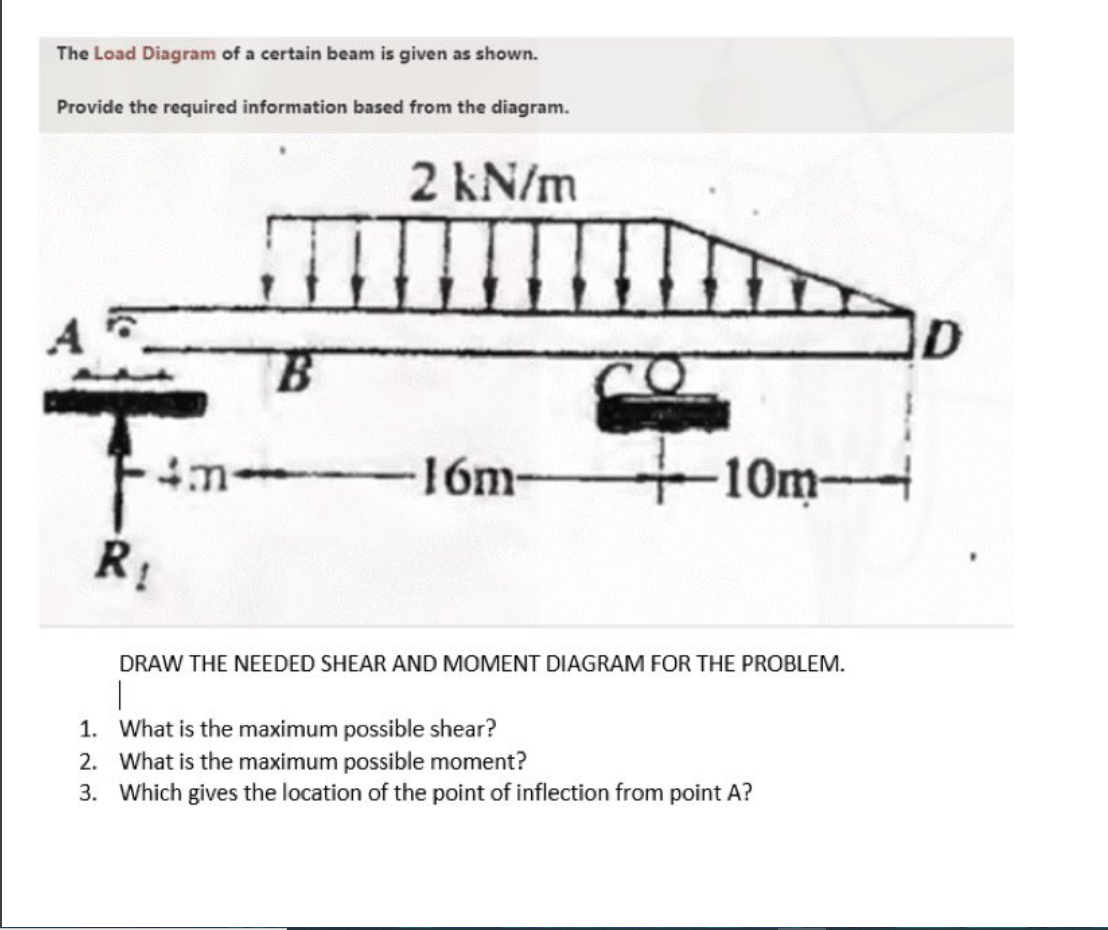

The Load Diagram of a certain beam is given as shown. Provide the required information based from the diagram. 2 kN/m D B 16m -10m R DRAW THE NEEDED SHEAR AND MOMENT DIAGRAM FOR THE PROBLEM. 1. What is the maximum possible shear? 2. What is the maximum possible moment? 3. Which gives the location of the point of inflection from point A?
