The Moment Diagram of a certain beam is given as shown. Provide the required information based from the diagram. +Max =6

Post by answerhappygod »

The Moment Diagram Of A Certain Beam Is Given As Shown Provide The Required Information Based From The Diagram Max 6 1
The Moment Diagram Of A Certain Beam Is Given As Shown Provide The Required Information Based From The Diagram Max 6 1 (717.54 KiB) Viewed 39 times

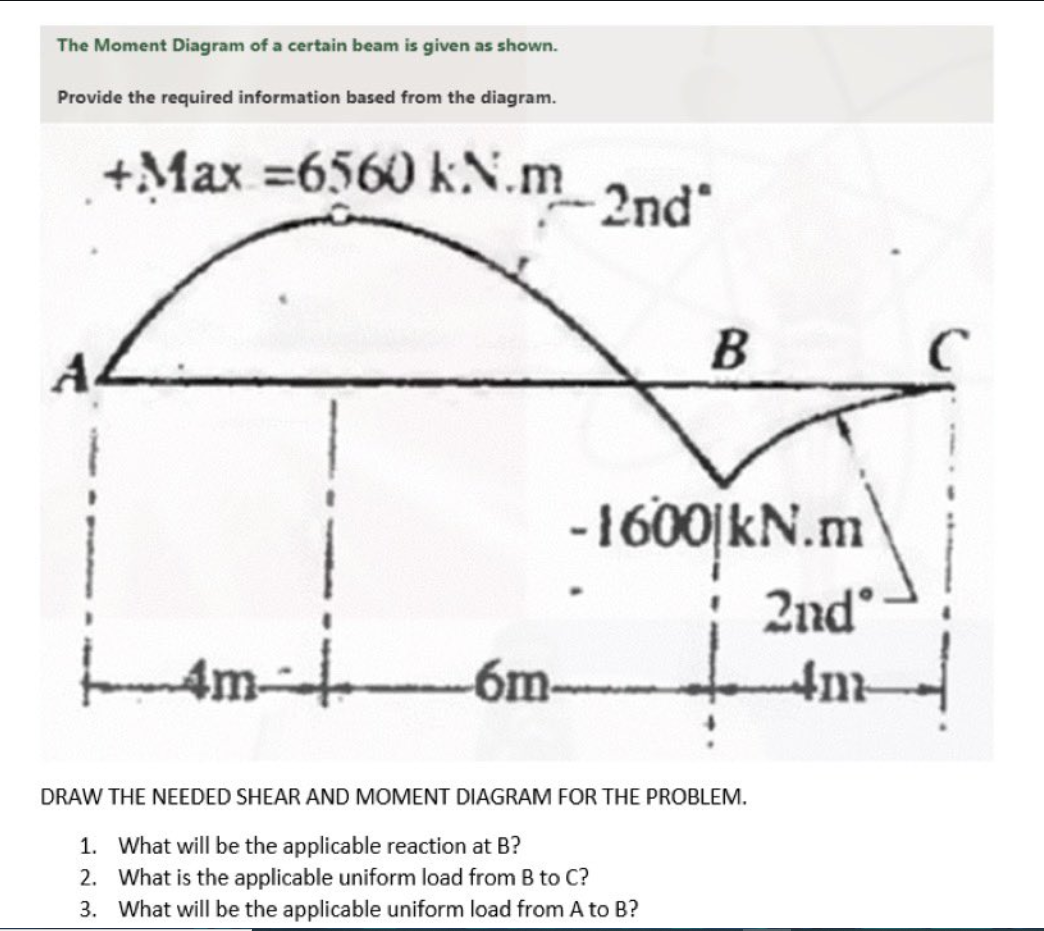

The Moment Diagram of a certain beam is given as shown. Provide the required information based from the diagram. +Max =6560 kv.m 2nd B - 1600KN.m 2nd om 4m2 4m DRAW THE NEEDED SHEAR AND MOMENT DIAGRAM FOR THE PROBLEM. 1. What will be the applicable reaction at B? 2. What is the applicable uniform load from B to C? 3. What will be the applicable uniform load from A to B?
