Figure Q3 below shows the cross section of a steel member. All dimensions are in mm. a) Determine the second moment of a

Post by answerhappygod »

Figure Q3 Below Shows The Cross Section Of A Steel Member All Dimensions Are In Mm A Determine The Second Moment Of A 1
Figure Q3 Below Shows The Cross Section Of A Steel Member All Dimensions Are In Mm A Determine The Second Moment Of A 1 (34.62 KiB) Viewed 27 times

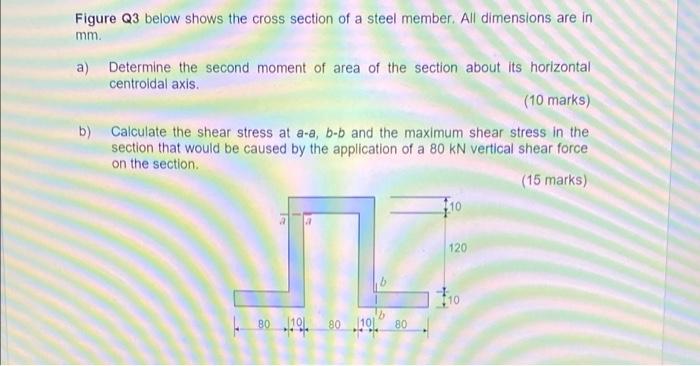

Figure Q3 below shows the cross section of a steel member. All dimensions are in mm. a) Determine the second moment of area of the section about its horizontal centroidal axis. (10 marks) b) Calculate the shear stress at e-a, b-b and the maximum shear stress in the section that would be caused by the application of a 80 kN vertical shear force on the section (15 marks) 110 120 10 B01080 1101 80
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
