Two cylindrical rods, one of steel (40-mm in diameter) and the other of brass (30-mm in diameter), are joined together a

Post by answerhappygod »

Two Cylindrical Rods One Of Steel 40 Mm In Diameter And The Other Of Brass 30 Mm In Diameter Are Joined Together A 1
Two Cylindrical Rods One Of Steel 40 Mm In Diameter And The Other Of Brass 30 Mm In Diameter Are Joined Together A 1 (47.07 KiB) Viewed 32 times

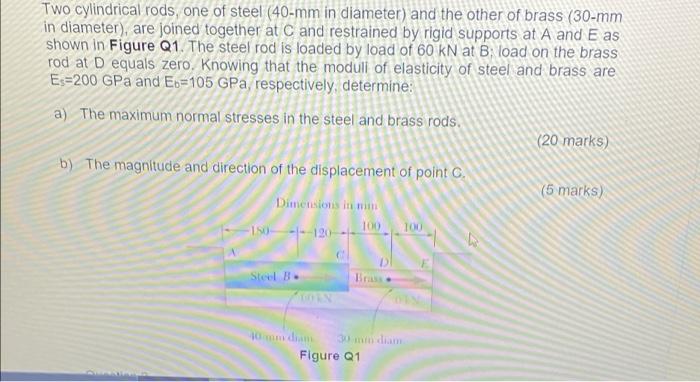

Two cylindrical rods, one of steel (40-mm in diameter) and the other of brass (30-mm in diameter), are joined together at C and restrained by rigid supports at A and E as shown in Figure Q1. The steel rod is loaded by load of 60 kN at B: load on the brass rod at D equals zero. Knowing that the modull of elasticity of steel and brass are Es=200 GPa and Es=105 GPa respectively, determine: a) The maximum normal stresses in the steel and brass rods. (20 marks) b) The magnitude and direction of the displacement of point C. (5 marks) Dimensions in - 150 ----120-100 100 0 Steel B. Dr 10mm Figure Q1
