Please answer the following with working. Thank you.
Please Answer The Following With Working Thank You 1 (543.41 KiB) Viewed 34 times
Please Answer The Following With Working Thank You 2 (508.33 KiB) Viewed 34 times

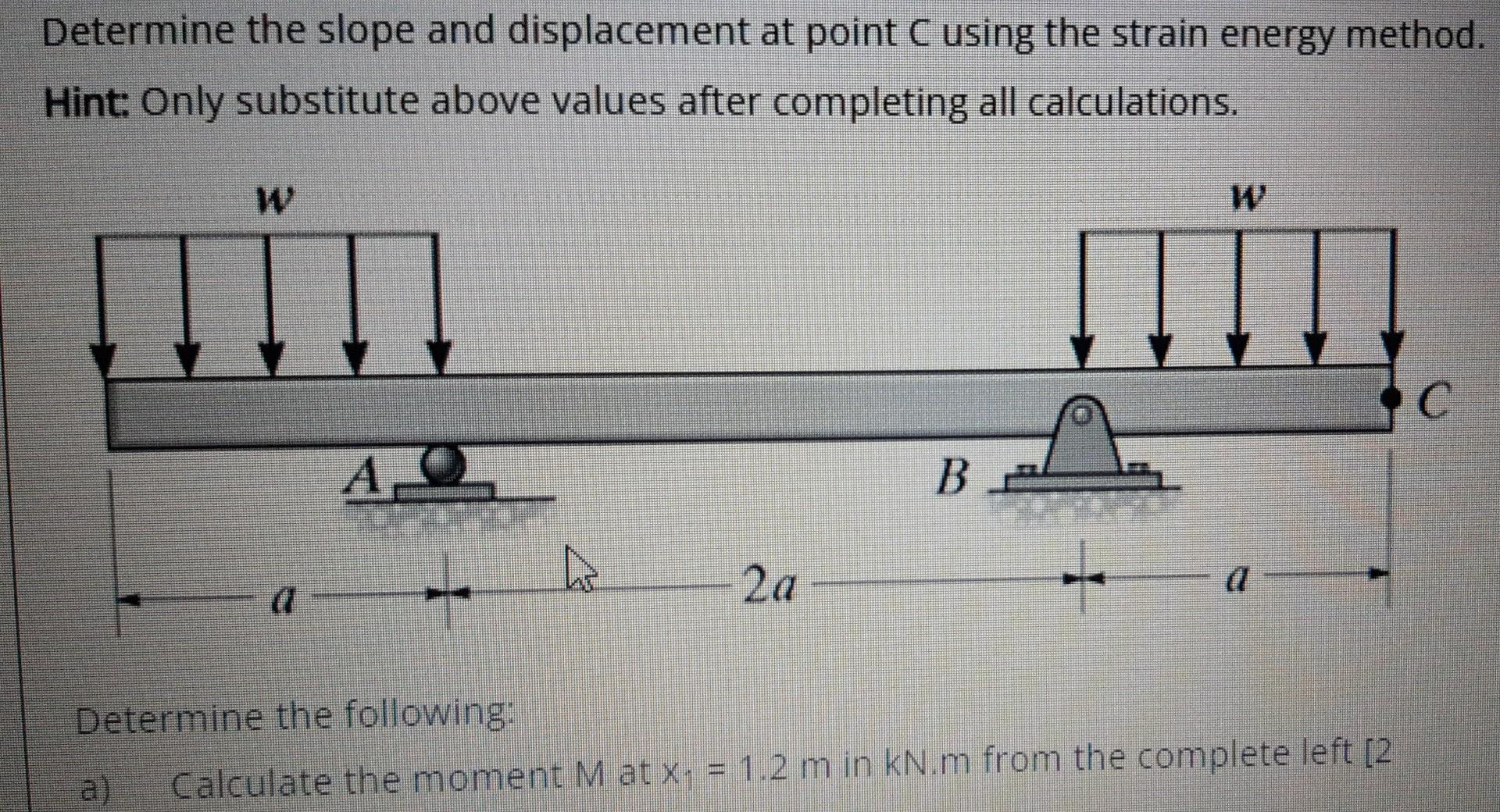

Determine the slope and displacement at point C using the strain energy method. Hint: Only substitute above values after completing all calculations. C ΑΟ BE 2a -- a Determine the following: Calculate the moment M at x4 = 1.2 m in kN.m from the complete left [2

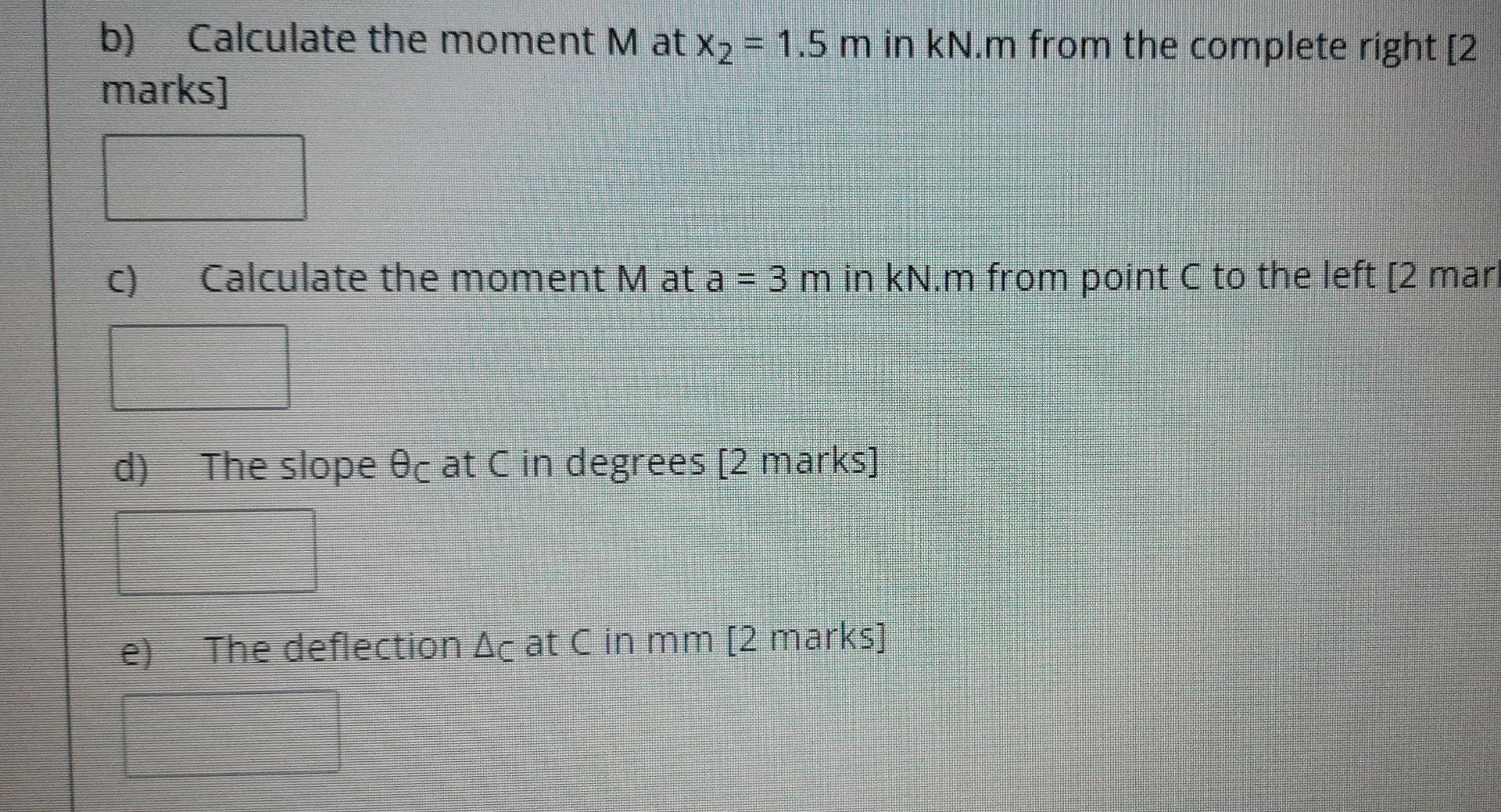

b) Calculate the moment M at x2 = 1.5 m in kN.m from the complete right [2 marks] C Calculate the moment M at a = 3 m in kN.m from point C to the left [2 mar d) The slope Oc at C in degrees [2 marks] KON The deflection Ac at C in mm [2 marks]
