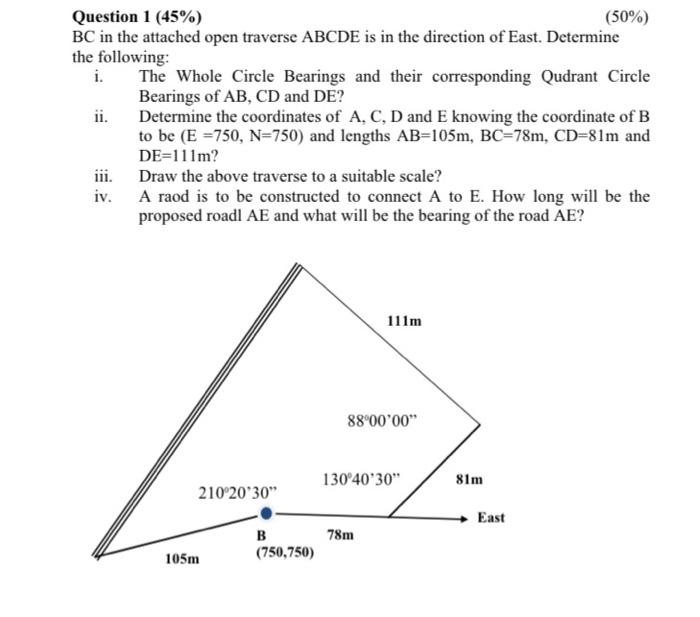

Question 1 (45%) (50%) BC in the attached open traverse ABCDE is in the direction of East. Determine the following: i. The Whole Circle Bearings and their corresponding Qudrant Circle Bearings of AB, CD and DE? ii. Determine the coordinates of A, C, D and E knowing the coordinate of B to be (E =750, N=750) and lengths AB=105m, BC=78m, CD=81m and DE=111m? iii. Draw the above traverse to a suitable scale? iv. A raod is to be constructed to connect A to E. How long will be the proposed roadl AE and what will be the bearing of the road AE? 111m 88°00'00" 130°40'30" 81m 210°20'30" East 78m B (750,750) 105m
