Spore Given the beam cross-section that is loaded by a clockwise moment M as in Figure 2, where will the bending stress be equal to zero? M M kNm х Hmm Х B mm Activate

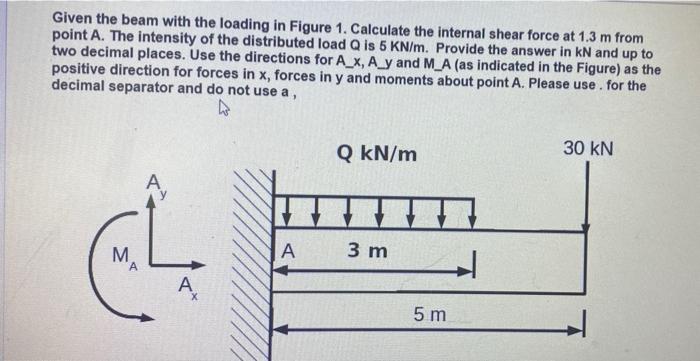

Given the beam with the loading in Figure 1. Calculate the internal shear force at 1.3 m from point A. The intensity of the distributed load Q is 5 KN/m. Provide the answer in kN and up to two decimal places. Use the directions for A_x, A_y and M_A (as indicated in the Figure) as the positive direction for forces in x, forces in y and moments about point A. Please use for the decimal separator and do not use a , Q kN/m 30 KN باب М. A 3 m A A 5 m
