help please
help please

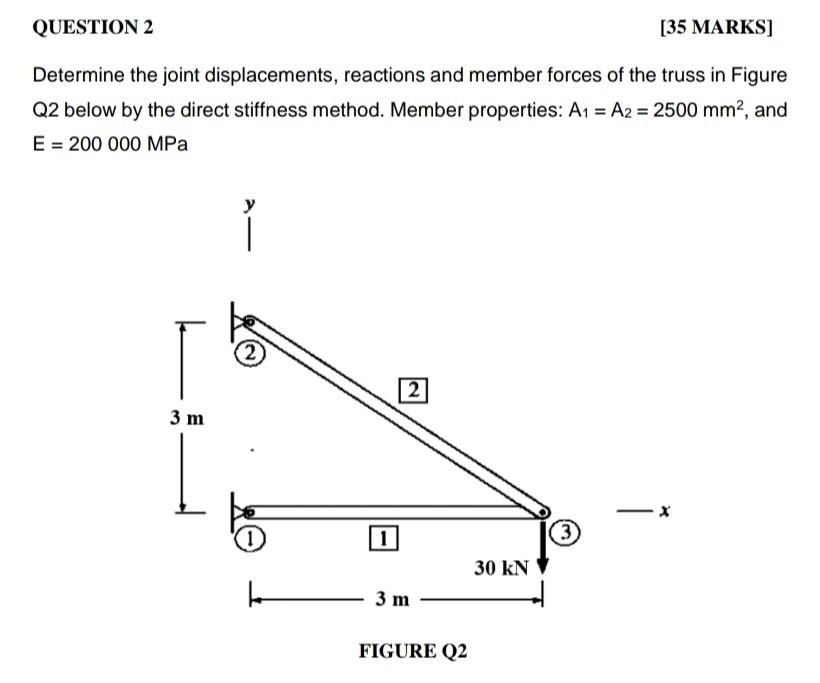

QUESTION 2 [35 MARKS] Determine the joint displacements, reactions and member forces of the truss in Figure Q2 below by the direct stiffness method. Member properties: A1 = A2 = 2500 mm?, and E = 200 000 MPa у 1 2 2 3 m x 3 30 KN h 3 m FIGURE Q2
QUESTION 2 [35 MARKS] Determine the joint displacements, reactions and member forces of the truss in Figure Q2 below by the direct stiffness method. Member properties: A1 = A2 = 2500 mm?, and E = 200 000 MPa у 1 2 2 3 m x 3 30 KN h 3 m FIGURE Q2
