- Question 1 125 Marksi The 11 M Long Beam Shown In Figure Q1 Below Has A Hinge Support At A And The Supports B Cand D A 1 (28.74 KiB) Viewed 57 times

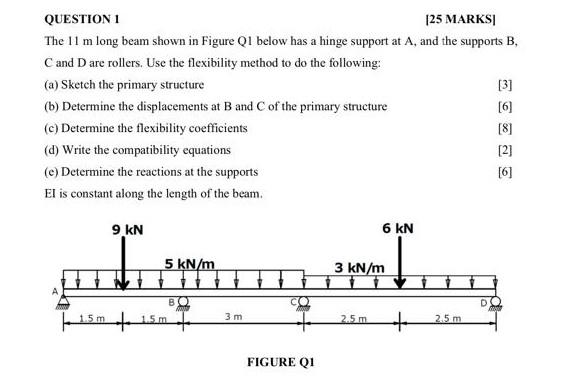

QUESTION 1 125 MARKSI The 11 m long beam shown in Figure Q1 below has a hinge support at A, and the supports B, Cand D are rollers. Use the flexibility method to do the following: (a) Sketch the primary structure [3] (b) Determine the displacements at B and C of the primary structure [6] (c) Determine the flexibility coefficients [8] (d) Write the compatibility equations [2] (e) Determine the reactions at the supports [6] El is constant along the length of the beam. 9 KN 6 KN 5 kN/m 3 kN/m por 15m + 1.5m + 3 m ce 2.5 m + 2.5 m FIGURE Q1
