Problem 2 - Multi-Story Loads
Problem:
Determine D, the Depth of embedment for an Anchored Sheet Pile Wall
in Granular Soil that is
submerged in 20 feet of water and as shown in the attached sketch.
You may use the Equivalent Beam
Method for your analysis.
Problem 2 Multi Story Loads Problem Determine D The Depth Of Embedment For An Anchored Sheet Pile Wall In Granular S 1 (98.23 KiB) Viewed 31 times

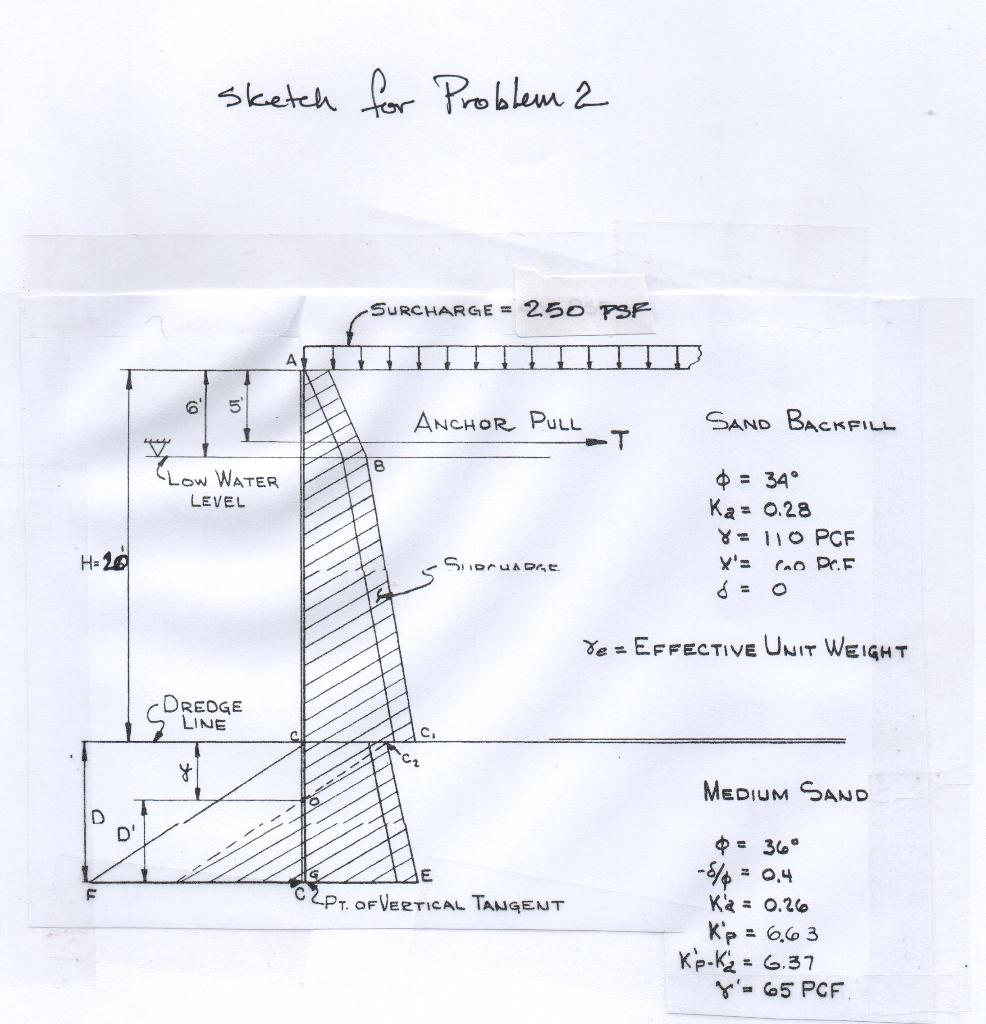

sketch for Problem 2 SURCHARGE = 250 TSF A 5 ANCHOR PULL SAND BACKFILL 8 (Low WATER LEVEL $ = 34° ka= 0.28 - 110 PCF X' CO DE H-20 Sorua DE de = EFFECTIVE UNIT WEIGHT DREDGE LINE Y MEDIUM SAND D' 2 ZPT. OFVERTICAL TANGENT $ = 36 -S=0.4 Ka = 0.26 Kp = 6.63 Ke-K₂ = 6.37 Y'= 65 PCF
