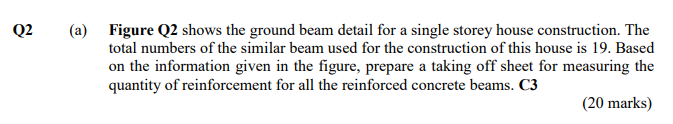

Q2 (a) Figure Q2 shows the ground beam detail for a single storey house construction. The total numbers of the similar beam used for the construction of this house is 19. Based on the information given in the figure, prepare a taking off sheet for measuring the quantity of reinforcement for all the reinforced concrete beams. C3 (20 marks)
125 x 125 Column 2R12 2R18 125 mm Az 375 mm R6-150 mm KI 2600 mm Section A-A A GROUND BEAM (Concrete cover = 25 mm) FIGURE Q2
