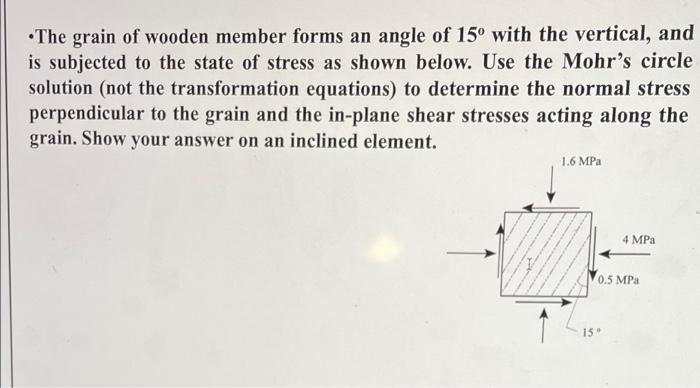

•The grain of wooden member forms an angle of 15º with the vertical, and is subjected to the state of stress as shown below. Use the Mohr's circle solution (not the transformation equations) to determine the normal stress perpendicular to the grain and the in-plane shear stresses acting along the grain. Show your answer on an inclined element. 1.6 MPa 4 MPa 0.5 MPa î 15
